Brand: SPEAR
Spear High Pressure HTP 70 Sprayer Pump for Cleaning, Spraying in Agriculture and Car Washing
SKU: TI-SH-35708
Delivery By: Jun 23 - Jun 25
MRP : ₹5200
Delivery By: Jun 23 - Jun 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5200 (Including GST)
Get Extra ₹78 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High Pressure HTP 70 Sprayer Pump
Country of origin: China
Specifications
- Brand: SPEAR
- Weight (Approx.) : 10 kg
- Required Motor : 5 HP
- Required Engine : Can Be Attached with Tractors
- Speed : 800 - 1200 RPM
- Delivery Output : 40-70 LPM
- Body Material : Aluminum Die Cast
- Pump Material : Brass Coated Cast Iron
- No. of Cock (Outlet Connections) : 2
- Hose Pipe Diameter : 8.5 MM & 10 MM (10 MM is preferable)
- No. of Piston : 3
- Pump Oil Capacity : 1.25 L (20W40)
- Spray Range (Vertically) : 20 to 25 Feet (approx)
- Max Hose Pipe Can Be Connect : 300 meter
Note : colour of the Product may Vary
Description
An HTP (High-Pressure Triplex) sprayer pump is a specialized pump used in agricultural and industrial applications to deliver a high-pressure spray of liquid. These pumps are designed to ensure efficient and thorough coverage, making them valuable tools for tasks like pest control, fertilization, and irrigation.

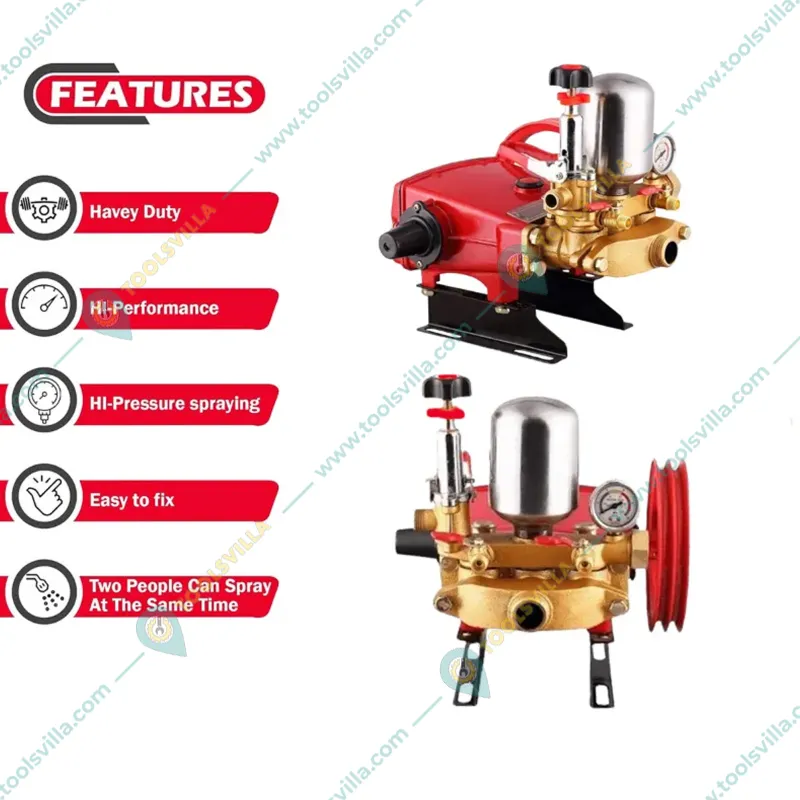

Features
:- High-Pressure Output: HTP sprayers are designed to generate high pressure, ensuring that the spray can reach distant plants and cover a large area quickly and effectively
- Durability and Longevity: HTP sprayers are built with robust construction and high-quality materials to withstand harsh agricultural environments and frequent use.
- Versatility: HTP sprayers can handle a variety of liquids, including pesticides, herbicides, liquid fertilizers, and even water

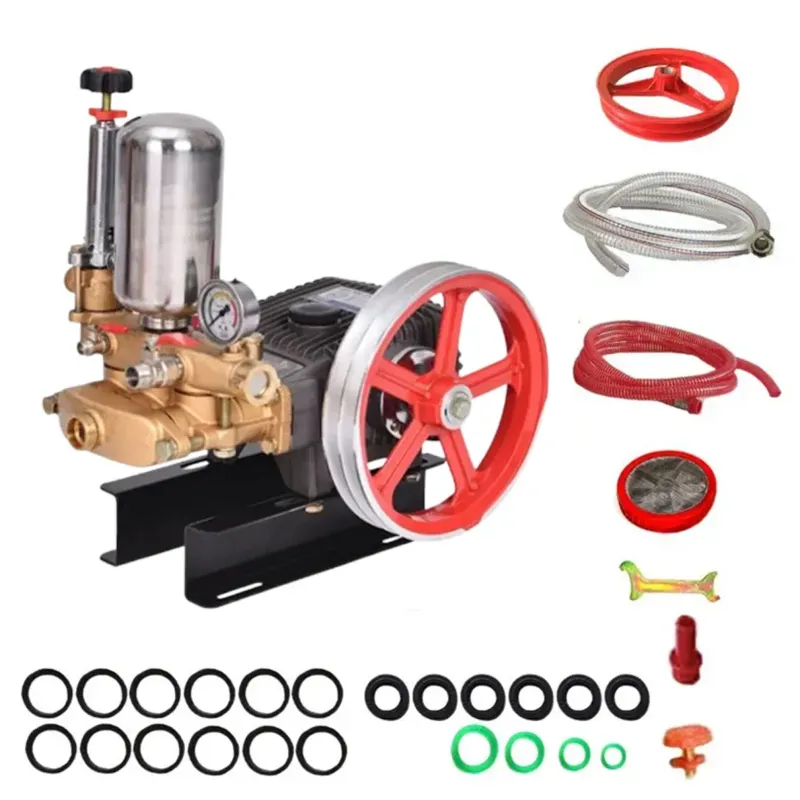

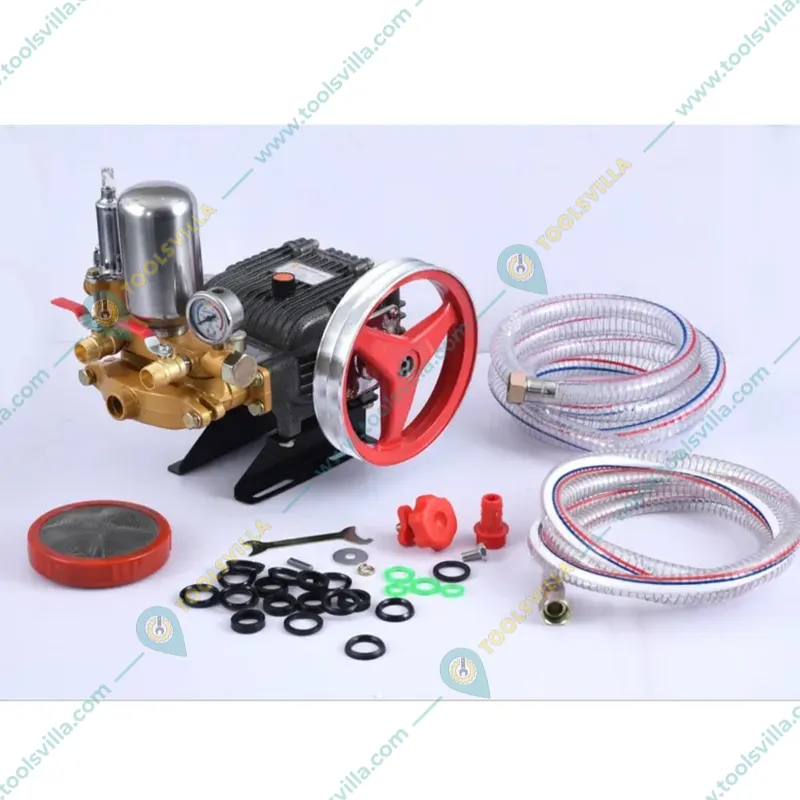

Accessories
:- Suction Hose Pipe
- Overflow Hose Pipe
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:- Vehicles (cars, bikes, etc.) Washing.
- Agriculture spray in big farmland.
- Pressure cleaning.
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
