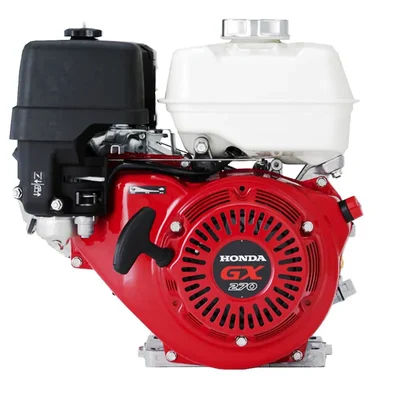

Honda GX270 OHV 8.4 HP 4 Stroke Single Cylinder Air Cooled Petrol Engine

• Bore X Stroke (mm) : 77 x 58 mm
• Compression ratio : 8.5 : 1
• Description Code : 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft
• Fuel Tank Capacity (L) : 5.3 Litre
• Ignition System : Digital CDI with variable ignition timing
• Net Power : 6.3 kW ( 8.4 HP ) / 3600 rpm
• Net Torque :  14.1 lb-ft (19.1 Nm) @ 2,500 rpm
• Oil Capacity : 1.1 Litre
• Starting System : Recoil (el. start optional)
• Dry Weight(Kg) : 25.8 kg
• Displacement : 270 cm³
• Cylinder sleeve type : Cast iron sleeve
• Dimensions (L x W x H) : 381 x 428 x 422 mm
• Fuel cons. at cont. rated power : 2.4 L/h - 3600 rpm
• Cont rated power : 4.6 kW ( 6.2 HP ) / 3000 rpm, 5.1 kW ( 6.8 HP ) / 3600 rpm
• Max. net torque : 19.1 Nm / 1.94 kgfm / 2500 rpm

• PTO Shaft Rotation : Counterclockwise (from PTO shaft side)
• Carburetor : Butterfly Float Type
• Governor System : Centrifugal Mass Type
• Lubrication System : Splash
• Air Cleaner : Dual element
• Fuel : Unleaded 86 octane or higher

Features

• OHV Design : Overhead Valve for efficient power.
• High Power : Approximately 8.4 HP / 6.3 kW output.
• 4-Stroke : No fuel/oil mixing needed.
• Fuel Efficient : Lower running costs.
• Low Emissions : Environmentally compliant.
• Durable & Reliable : Built for heavy-duty, long-term use.
• Easy Starting : Features automatic decompression.
• Low Vibration : Balanced design for smooth operation.
• Quiet Running : Large exhaust system.
• Cast Iron Sleeve : Enhanced cylinder durability.
• Dual Oil Drains : Flexible maintenance.
• Heavy-Duty Starter : Durable recoil.
• Electronic Ignition (CDI) : Reliable, low-maintenance spark.
• Oil Alert : Engine shuts off if oil is low.
• Versatile : Powers generators, pumps, tillers, construction gear.
