Brand: HPM

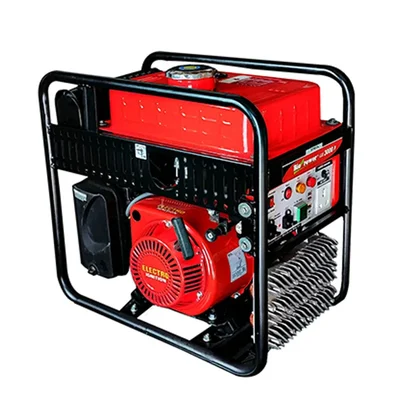

HPM 3 KVA Petrol Inverter Portable Generator with Recoil Start (Oasis UL-30i)
SKU: TI-H3-22488
1388 people have viewed this recently
Delivery By: Dec 14 - Dec 16
MRP : ₹83860 ₹59860
29% OFF!
1388 people have viewed this recently Delivery By: Dec 14 - Dec 16 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹59860 (Including GST)
MRP : ₹83860
29% OFF!
Get Extra ₹898 OFF on Prepaid Orders
Short Description
3 KVA Portable Petrol Inverter Generator, Model Oasis UL-30i , Recoil Start
Ultra-lightweight, Digital Invertor-Based Alternator with electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave
Country of origin: India
Specifications
- Brand: HPM
- Weight (Approx.) : 30.5 kg
- Fuel Used : Petrol
- Fuel Consumption : 1.3 l/hr
- Model No. : Oasis UL-30i
Generator :
- Max AC. Output VA : 3300
- Rated AC. Output VA : 3000
- Rated Current Amps : 13
- NFB Amps : 13
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator :
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Inverter : 100 KHz, IGBT Based Digital Invertor – 3 Kw
DC Outputs :
- DC Output -5V TO 20V & DC Ports
- Type - C USB : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
Engine :
- Model : HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70 x 58 mm
- Displacement : 223 cc
- Starting System : Recoil Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
- Fuel Tank Capacity: Petrol – 7 Ltr.
- Fuel Consumption : Petrol 1.3 ltr / hr, Approx.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : < 86Db (as per CBCP - II Norms)
- Continuous Running (With One Filling) : > 5 Hrs.
Panel :
- Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
Description
Compact and effective, the 3 KVA Petrol Inverter Generator is made for a variety of uses, especially in isolated locations with limited connection to the electrical grid. This generator model, called the Oasis UL-30i, is lightweight and portable and has cutting-edge technology that guarantees steady power generation. Two Oasis UL-30i units can be connected in parallel to generate a combined output of up to 6 KVA for higher power requirements. It is adaptable for both personal and professional use thanks to this functionality.
Features
:- 3.3 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP 30i Generator can be made to Run In Parallel, Two HP30i Generators in Parallel will produce 3 KVA + 3 KVA = 6KVA Power
Accessories
:- Manual 1 pcs
- Funnel 1 pcs
- Screw Driver 1 pcs
- Spanner 1 pcs
- Three Pin Plug 1 pcs
Applications
:Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.Due To Light Weight Ideal for Field Jobs and Mobile Applications, Picnic Camp Application.
