Brand : HPM

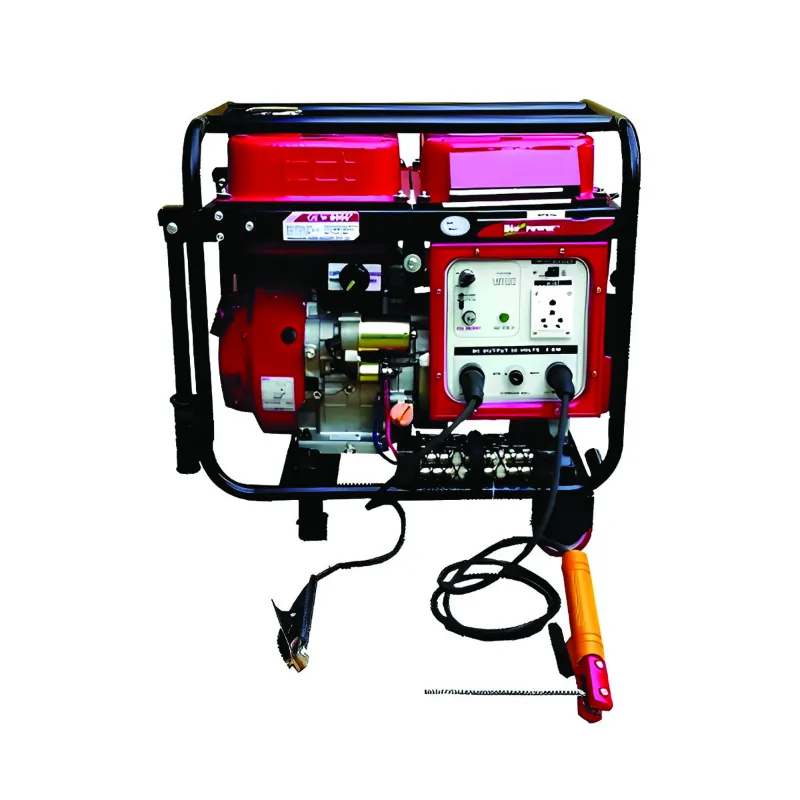

HPM 3 KVA Recoil Start Portable Petrol Run ARC Welder cum Generator Machine (GE W 7000 R)
SKU : SD-HPM-20230332
MRP : ₹195438
₹174499
11% OFF!
-
1
+
Get Extra ₹2,617 OFF on Prepaid Orders
Delivery By: Jun 21 - Jun 23
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
ARC Welder Cum Generator Machine
3 KVA, Recoil Start
16 HP Engine & 3600 RPM No Load Speed
Country of origin: India
Specification
Description
HPM 3 KVA Recoil Start Portable Petrol Run ARC Welder Cum Generator Machine (GE W 7000 R)

Features :
  • Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode
  • In built AC 230 volt - 50 Hz, 3 KVA for AC Appliances
  • A.C. Circuit Protector (NFB)
  • A C. Pilot Lamp
  • Engine Oil Protection
  • Fuel Level Gauge
  • 1 Nos A.C. Output Sockets
  • 1 Set Costar Wheels and handles

Specifications :
  • Product Type : Welder cum Generator
  • Model Number : GE W 7000 R
  • Brand : HPM
  • Welding Output Current (Duty Cycle60%) : 225Amps.
  • Welding Output Current (Duty Cyele1 00%) : 200Amps.
  • Working Voltage : 20V to 35V
  • Open Circuit Voltage (OCV) : 70 Volt (Minimum)
  • Welding Current Regulation (Amps) : 75 - 225 AMPS
  • Rectifying Mode : SCR,PhaseControlled3-phase, Rectifying Bridge
  • Maximum Electrode diameter : 2.6mm to 5.Omm
  • Alternator Type : Brush less with Rear Earth Magnet Rotor
  • Maximum Ac Output : 3000VA
  • Rated Output Current : 12 Amps
  • AC Voltage at No Load : 240 Volts to 10 Volts, Single Phase
  • AC Voltage at Rated Load : 220 Volts to 10 Volts, Single Phase
  • Frequency (Adjustable) : 50 to 60Hz
  • NFB Amps : 12 Amps
  • Class of Insulation : F
  • Engine Model : HM192PY
  • Engine Type : OHV25"Inclined, Single Cylinder,4 strokes, s.1, Forced Air Cooling
  • Engine Maximum Power : 16.0 HP 3600 RPM
  • Engine Bore x Stroke : 92x67 mm
  • Engine Displacement : 445 cc
  • Engine Starting System : Recoil Start
  • Engine Ignition System : TCI (Transistor Control Ignition)
  • Engine Fuel : Standard Petrol
  • Engine Fuel Tank Capacity : 15.5 Liters
  • Engine Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr.
  • Engine Continuous Operating Hour : Approx. 8 hr.
  • Engine Lube. Oil Capacity : 1200 ml.
  • Engine Lubricating Oil Consumption : 4.3 gm./Hr.
  • Dimension LxWxH (mm) : 670 x 510 x 670 mm
  • Dry Weight (Kgs.) With Wheels & Battery : 80 KG

Standard Accessories :
  • AC Plug : 1Pcs.
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3 Mtr. Cable : 1 Set
  • Oil Funnel : 1 No.
  • Owner's Manual : 1 No.
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set
