Brand : HPM

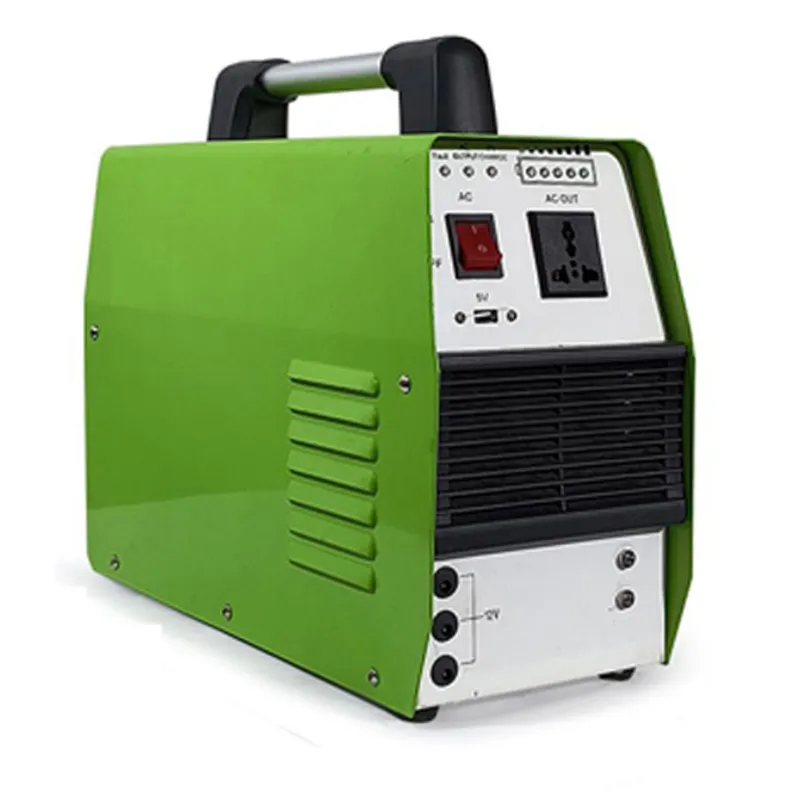

HPM 500VA Power Station with Inbuilt 704WH Lithium-Battery, 1 Year Warranty (PS-500LB)
SKU : TI-H5-22499
MRP : ₹21500
₹17200
20% OFF!
-
1
+
2776 people have viewed this recently
Get Extra ₹258 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
PS-500LB is a Portable multifunctional Battery Generator
It gives  extra large backup upto 3 - 4 Hours
PS-500LB has a lowest price in its segment
It uses advance Lithium Ion battery 12.8V - 50Ah for power backup.
Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 12 kg
  • Model No. : PS-500LB
  • Battery : Lithium Iron Phosphate LiFePo4
  • Battery Type : Prismatic 3.2 V- 50 AH
  • Battery Voltage : 12.8 V (4S)
  • Peak Capacity : 12.8V - 50 AH (640Wh)
  • Single Cell Equivalent Capacity​ : 200Ah @ 3.2 V
  • Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
  • BMS (Battery Management System)​: Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
  • Shelf Life : Charge Every  3 - 6 Months

AC 230 Volt Output (Invertor Power Supply) :
  • Continues Rated Power Output : 300 W
  • Peak Output Power :   350 W
  • Voltage & Type : AC - 230 V,50Hz, Modified Sine Wave
  • THD : NA
  • Power Factor : 1 (Unity)
  • Over Load : 110% < Load <120% @ 1min 120% < Load <150% @ 2 S
  • Power Less (No Load & Turned- Off) : < 10W
  • AC Output Back time @ 70% of rated load (VA) : ≥ 3 Hours
  • Max. Efficient (>70% Load) : 92%
  • Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)

Other DC Outputs - 5V to 20 V & DC Ports :
  • USB Output (2) : 5V DC, 1.5A, 7W
  • 12V DC -DC 5521 (3 Ports) : 3 x 12V, 3A-36 W Each (5.5mm x 2.1 mm)
  • USB & DC Over Load Current Protection : Yes
  • USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)

Indicators in Panel :
  • Battery Level / Status Indicators: Battery Level Shows 5 Segment LED's
  • Function Indicators : Fault / AC Output / PV Charges / Mains Charging / Car Charges

Charging Input Power (2 Way of Recharge) :
  • AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External AC - DC Adapter (CC/CV) - 5521 15V-8A (100 Watt) Charging Time > 7 Hours
  • Solar Panel PV Charge : 18V- 150 W, Charging Time 7 - 8 Hours
  • Heat Dissipation : Air Cooling (Fan), Aluminium Housing
  • IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical

Working Condition :
  • Charge Temperature : 0˚C ~ 45˚C
  • Operating Usage Temp. : -10˚C ~ 45˚C
  • Operation Storage Humidity : 5% ~ 90%

Product Size  :
  • Dimensions (L x W x H) : 375 x 150 x 320 mm
Description
A portable, multipurpose battery generator (power station) is the PS-500LB. This solar power station's primary benefit over competing models is that it provides extra large backup for up to three or four hours, and the PS-500LB has the lowest price in its class - that is, the lowest price without sacrificing performance. This inverter has three 12V DC outputs for 12V DC appliances and AC 230V and DC-5V outputs for charging smartphones. For outdoor and field power applications, the PS-500LB portable power station can be utilized both indoors and outdoors. This is a cost-effective solar power station concept that uses a state-of-the-art lithium-ion battery with a capacity of 12.8V to 50Ah for power backup.

Features

 :
  • PS-500LB is a Portable multifunctional Battery Generator (Power Station).
  • The main advantage of this Solar Power Station over other brands is that it gives extra large backup for up to 3 - 4 Hours &  PS-500LB has the lowest price in its segment, i.e. minimum price but maximum performance.
  • This inverter gives AC 230V output & also DC-5V for smartphone charging & 3* 12V DC output for running 12V DC appliances.
  • PS-500LB is a Portable Power Station & that can be used in households & as well carried away anywhere for outdoor/ field power applications.
  • This is an Economical model of Solar Power Station, it uses an advanced Lithium Ion battery  12.8V - 50Ah for power backup.

Accessories

 :
  • 1 Pcs of AC Charging Adapter with 5521 Pin

Applications

 :
  • It is Portable and can also carried for Outdoor Fields jobs, shops, and Commercial applications & also very useful for household applications in rural areas.

Note : 1 Year Warranty
