Brand : HPM
HPM 3.3 KVA Recoil Start Petrol Inverter Portable Generator (Osprey HP-30i)
SKU : TI-H3-22484
MRP : ₹125430
₹89599
29% OFF!
-
1
+
Get Extra ₹1,344 OFF on Prepaid Orders
Delivery By: Jul 6 - Jul 8
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 3.3 KVA Petrol Inverter Portable Generator
6.5 HP Engine and 3600 RPM Speed
Recoil Start


Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 60 kg
  • Fuel Used : Petrol
  • Model No. : Osprey HP-30i

Generator :
  • Max AC. Output : 3.3 KVA (3300 VA)
  • Rated AC. Output : 3 KVA (3000 VA)
  • Rated Current : 13 Amp
  • NFB : 13 Amp
  • AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%

Alternator :
  • Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
  • Invertor : 100 KHz, IGBT Based Digital Invertor – 3 Kw

DC Outputs
DC 12 V – 120 Watt, CG Port
  • Continuous Output Current : 10 A (Max. 120 Watt)
  • 12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
  • DC Output Short-circuit Protection : Yes (Disconnect Load Recovery)

DC Outputs – 5V to 20 V & DC Ports
  • USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
  • USB Output Fast Charging QC 3.0 (3) :1* 5V – 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
  • Type – C USB (4) : 1* ‘C’ Type – 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine :
  • Model No. : HM170P
  • Type : OHV25°Inclined, Single Cylinder, 4 strokes, S.I, Forced Air Cooling
  • Maximum Power : 6.5 HP @ 3600rpm
  • Bore x Stroke : 70×58 mm
  • Displacement : 223 cc
  • Starting System : Recoil Start
  • Fuel Tank Capacity : 20.5 Ltr.
  • Fuel Consumption : 1.3 ltr/hr
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.
  • Sound level : < 86Db (as per CBCP – II Norms)

Panel And Other Standard Features :
  • Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
  • Oil Alert System : Yes
  • Over Load Indicator : Yes
  • 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
  • Fuel Level Gauge : Yes
  • AC On /Off, Overload Protection (NFB) : Yes
  • Electronic Over Load Protection : Yes, Inbuilt with Inverter
  • Castor Wheels : Yes

Description
HPM 3.3 KVA Portable Petrol Generator is a great generator with recoil starting system. This generator is a great power source that runs efficiently on petrol and it is ideal for domestic, industrial, office, field jobs etc. purposes. Also this generator is portable and hence can be carried from one place to another.

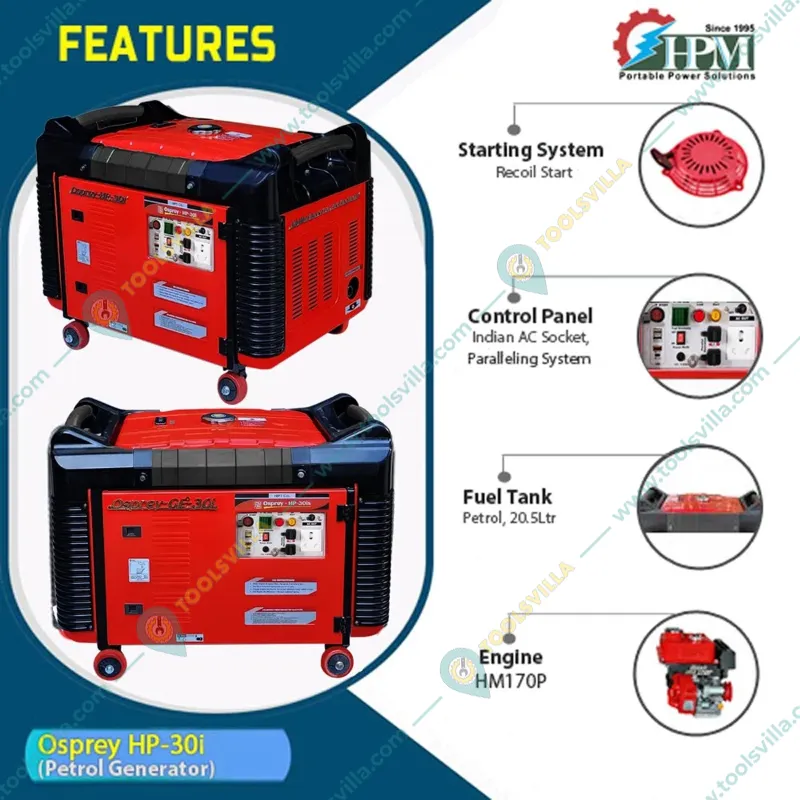

Features

 :
  • 3.3 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
  • Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%

Applications

 :
  • Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment etc.
