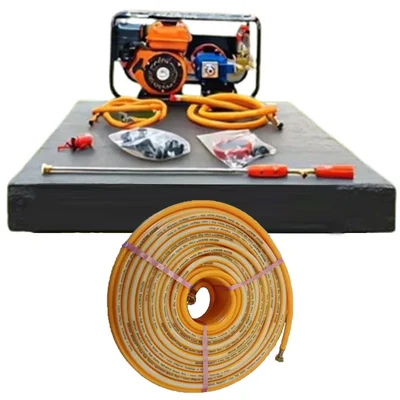

Jeevan Shakti HTP 22 with 6.5 HP Engine & 8.5 mm 100 meter 5 Layer Hose Pipe

Brand: Generic (Imported)

Jeevan Shakti HTP 22 with 6.5 HP Engine & 8.5 mm 100 meter 5 Layer Hose Pipe

Name: Jeevan Shakti HTP 22 with 6.5 HP Engine & 8.5 mm 100 meter 5 Layer Hose Pipe
Brand: Generic (Imported)
SKU: TI-JS-44232
Price: 14250 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-JS-44232

MRP : ₹23800 ₹14250

40% OFF!

Get Extra ₹214 OFF on Prepaid Orders

Delivery By: Dec 9 - Dec 11

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹14250 (Including GST)

MRP : ₹23800

40% OFF!

Get Extra ₹214 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jeevan Shakti HTP 22 with 6.5 HP Engine

Comes with 8.5 mm 100 meter 5 Layer Hose Pipe

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 40 kg

Pump Specification :

HTP Pump Model : 22
Pump RPM : 800-1200
Output Pressure : 10-40 kg/cm2
Suction Volume : 13-22 L/min
Body Material : Aluminum Die Cast
Pump Material : Brass Coated Cast Iron
Pulley Size : 7 Inch (17.7 cm)
No. of Cock (Outlet Connections) : 2
Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
No. of Piston : 3
Pump Oil Capacity : 700 ml (20W40)
Max Hose Pipe Can Be Connect : 50 to 100 meter

Engine Specification :

Rated Power : 6.5 HP
Displacement : 196 cc
Engine Type : 4 - Stroke, Air cooled
Fuel Used : Petrol
Fuel Tank : 3.6 Liter (Approx.)
Engine Oil Capacity : 600 ML (20W40)
Fuel Consumption : 700-900 ml/hour (Approx.)

Hose Pipe Specification :

Diameter : 8.5 mm
Layer : 5 Layers
Length : 100 meter
Construction: 5 layers including polyester yarn
Material: PVC and reinforced fabric
Working Pressure: Suitable for high-pressure spraying

Note : Color of the hose pipe may vary.

Toolsvilla is proud to present the Jeevan Shakti HTP 22, a robust and reliable high-pressure triplex plunger pump meticulously engineered for superior performance and longevity. This model features a powerful 6.5 HP engine, providing ample power for a wide range of demanding applications. The HTP 22 is ideally suited for agricultural, industrial, and commercial use, including crop spraying, vehicle washing, and general cleaning tasks. Its durable construction ensures dependable operation even under heavy use. The Jeevan Shakti HTP 22 is now available at Toolsvilla, where quality meets performance. Invest in a tool built to last.

Features

Powerful 6.5 HP Engine : Delivers consistent and reliable power for optimal performance.
High-Pressure Pump : Engineered for efficient and effective high-pressure output.
8.5 mm 100-Meter 5-Layer Hose Pipe : Provides extended reach and enhanced durability for demanding applications.
Easy to Use
Heavy-Duty Build Quality
Long-Lasting & Durable

Accessories

1.5 Meter Suction Pipe
1.5 Meter Overflow Pipe
Filter
2 Belt For Pully
Tool Kit
Oil Seal Ring
Spray Gun
8.5 mm 100 meter 5 Layer Hose Pipe

Applications

Used for high-pressure spraying, cleaning, etc.

Usage

Attach the inlet pipe, overflow pipe, and hose pipe.
Pour fuel in the fuel tank accordingly, & Pour the engine oil in the engine oil chamber separately.
Be sure about safety precautions.
Start the engine and do your work as per your needs.
