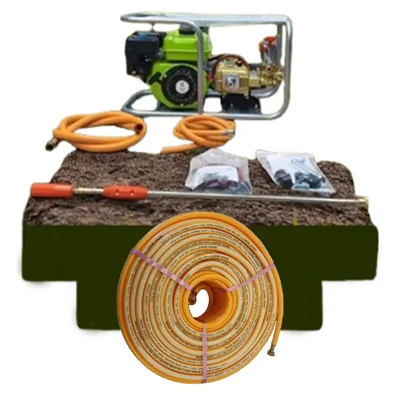

Jeevan Gold Premium HTP 22 with 6.5 HP Engine & 8.5 mm 100 meter 5 Layer Hose Pipe
SKU : TI-JG-44233
MRP : ₹24800
₹14800
40% OFF!
-
1
+
Get Extra ₹222 OFF on Prepaid Orders
Delivery By: Sep 10 - Sep 12
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Jeevan Gold Premium HTP 22 with 6.5 HP Engine
Comes with 8.5 mm 100 meter 5 Layer Hose Pipe
Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 42 kg
Pump Specification :
  • HTP Pump Model : 22
  • Pump RPM : 800-1200
  • Output Pressure : 10-40 kg/cm2
  • Suction Volume : 13-22 L/min
  • Body Material : Aluminum Die Cast
  • Pump Material : Brass Coated Cast Iron
  • Pulley Size : 7 Inch (17.7 cm)
  • No. of Cock (Outlet Connections) : 2
  • Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
  • No. of Piston : 3
  • Pump Oil Capacity : 700 ml (20W40)
  • Max Hose Pipe Can Be Connect : 50 to 100 meter
Engine Specification :
  • Rated Power : 6.5 HP
  • Displacement : 196 cc
  • Engine Type : 4 - Stroke, Air cooled
  • Fuel Used : Petrol
  • Fuel Tank : 3.6 Liter (Approx.)
  • Engine Oil Capacity : 600 ML (20W40)
  • Fuel Consumption : 700-900 ml/hour (Approx.)
Hose Pipe Specification :
  • Diameter : 8.5 mm
  • Layer : 5 Layers
  • Length : 100 meter
  • Construction: 5 layers including polyester yarn
  • Material: PVC and reinforced fabric
  • Working Pressure: Suitable for high-pressure spraying
Note : Color of the hose pipe may vary.
Description
Toolsvilla is proud to present the Jeevan Gold Premium HTP 22, a robust and reliable high-pressure triplex plunger pump meticulously engineered for superior performance and longevity. This model features a powerful 6.5 HP engine, providing ample power for a wide range of demanding applications. The HTP 22 is ideally suited for agricultural, industrial, and commercial use, including crop spraying, vehicle washing, and general cleaning tasks. Its durable construction ensures dependable operation even under heavy use. The Jeevan Gold Premium HTP 22 is now available at Toolsvilla, where quality meets performance. Invest in a tool built to last.

Features

 :
  • Powerful 6.5 HP Engine : Delivers consistent and reliable power for optimal performance.
  • High-Pressure Pump : Engineered for efficient and effective high-pressure output.
  • 8.5 mm 100-Meter 5-Layer Hose Pipe : Provides extended reach and enhanced durability for demanding applications.
  • Easy to Use
  • Heavy-Duty Build Quality
  • Long-Lasting & Durable

Accessories

 :
  • 1.5 Meter Suction Pipe
  • 1.5 Meter Overflow Pipe
  • Filter
  • 2 Belt For Pully
  • Tool Kit
  • Oil Seal Ring
  • Spray Gun
  • 8.5 mm 100 meter 5 Layer Hose Pipe

Applications

 :
  • Used for high-pressure spraying, cleaning, etc.

Usage

 :
  • Attach the inlet pipe, overflow pipe, and hose pipe.
  • Pour fuel in the fuel tank accordingly, & Pour the engine oil in the engine oil chamber separately.
  • Be sure about safety precautions.
  • Start the engine and do your work as per your needs.
