Brand: Pilot

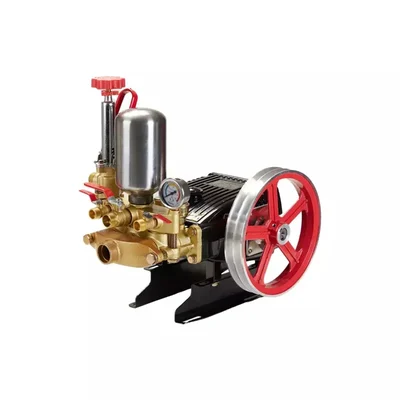

Pilot HTP 30 , 3 - 5 HP Power Sprayer Pump Ripped Body for Agricultural Spraying and High Pressure Cleaning | PL-HTP75
SKU: TI-PH-51574
Delivery By: Dec 11 - Dec 13
MRP : ₹8000 ₹6150
23% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹6150 (Including GST)
MRP : ₹8000
23% OFF!
Get Extra ₹92 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 30 , 3 - 5 HP Power Sprayer Pump Ripped Body for Agricultural Spraying and High Pressure Cleaning | PL-HTP75
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 12 kg
- Model: PL-HTP75, HTP 30No Ripped Body.
- Power: 3.0-5 HP.
- RPM: 800-1200.
- Plunger Stroke: 3x30mm.
- Suction Capacity: 20-35 L/min.
- Pressure: 1.0-4.0 MPa.
Description
The Pilot HTP 30 (PL-HTP75) is a robust 3-5 HP power sprayer pump with a ripped body design, ideal for agricultural spraying, high-pressure cleaning, and horticultural applications. Featuring a 3x30mm plunger stroke, 800-1200 RPM speed range, 20-35 L/min suction capacity, and adjustable 1.0-4.0 MPa pressure, it ensures efficient pesticide distribution, irrigation support, and thorough coverage while delivering durability for heavy workloads.
Features
:- Power Range: Operates efficiently with 3.0-5 HP engines for robust performance in demanding agricultural tasks.
- Variable Speed: Adjustable 800-1200 RPM to suit various spraying needs and conditions.
- Plunger Design: Features 3x30mm plunger strokes for reliable and enhanced suction efficiency.
- High Suction Capacity: Delivers 20-35 L/min for thorough coverage and minimal time usage.
- Adjustable Pressure: Provides 1.0-4.0 MPa (10-45 bar) for versatile applications from misting to high-pressure cleaning.
- Durable Construction: Ripped body with heavy-duty build ensures longevity in heavy workloads.
- Multi-Purpose Use: Ideal for crop spraying, irrigation, high-pressure cleaning, and horticultural fogging.
Applications
:- Crop Protection: Spraying insecticides, pesticides, fungicides, and herbicides in field crops to prevent pest attacks.
- Horticulture and Orchards: Precise application in gardens, orchards, and nurseries for healthy plant growth.
- Plantations and Sericulture: Uniform coverage in tea, coffee plantations, and silk farming areas.
- Forestry: Efficient spraying over large wooded areas for pest control.
- Irrigation and Foliar Feeding: Liquid fertilizer distribution and small-scale irrigation support.
- High-Pressure Cleaning: Surface cleaning, mist fogging, and disinfection tasks.
Usage
:- Assembly and Setup: Mount the pump securely to the engine base, connect suction and delivery hoses properly, and attach the appropriate nozzle for your crop type. Ensure all clamps and bolts are tight.
- Priming and Filling: Fill the chemical tank with clean water first for a test run, then prepare and fill with the recommended diluted agrochemical solution. Ensure hoses are free from leaks or kinks before starting the engine.
- Pressure Adjustment: Use the built-in regulator or bypass valve to set the pressure typically between 50–200 PSI depending on nozzle type and crop needs. Monitor the pressure gauge for steady flow.
- Spraying Technique: Spray at the recommended speed and nozzle angle for even coverage, avoiding spraying in windy or midday heat conditions to prevent drift and chemical wastage.
- Maintenance: After use, rinse the tank and pump thoroughly with clean water, inspect hoses and nozzles regularly, replace worn/nozzle parts, and lubricate moving parts to ensure long pump life and reliable operation.
- Safety Precautions: Follow manufacturer instructions carefully, avoid mixing incompatible chemicals, and wear protective gear while handling and spraying chemicals.
