Brand: Generic (Imported)

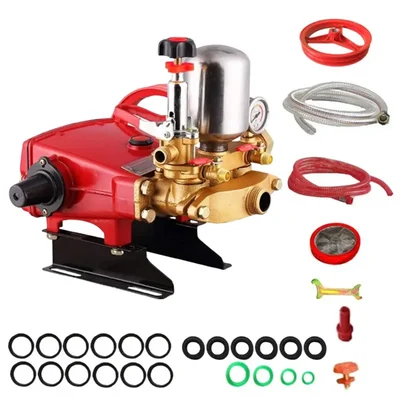

Heavy Duty HTP-45 Triple Pistons Pump With 2 Outlet For Cleaning & Agricultural Spray
SKU: BKS-105
₹3990 (Including GST)
MRP : ₹5500
Get extra ₹60 Discount (On Checkout)
Delivery By: May 4 - May 6
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HTP Pump for Cleaning Purposes, 45 LPM
Upto 3 hp Required Motor
Upto 6.5 hp Required Engine
Country of origin: China
Description
Introducing the "HTP Pump without Motor/Engine" from Toolsvilla - a powerful and efficient solution for all your fluid transfer needs. Engineered with precision and durability, this high-quality pump delivers exceptional performance without the added weight and complexity of a built-in motor. Designed for versatility, the HTP Pump is compatible with a wide range of power sources, allowing you to seamlessly integrate it into your existing setup. Boasting a robust construction and reliable operation, this pump is the ideal choice for industrial, agricultural, and commercial applications. Whether you're transferring liquids, chemicals, or even viscous fluids, the HTP Pump ensures a smooth and controlled flow, making it a must-have addition to your toolbox. Experience the convenience and reliability of the "HTP Pump without Motor/Engine" from Toolsvilla. Order yours today and elevate your fluid management.
Features
:- Three people can spray at the same time.
- Useful for high pressure spraying
- Ideal for orchards and high terrains
- Light weight and compact construction
- Sturdy and rugged construction
- Heavy duty & stainless steel piston
- Also compatible with engine or motor
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 11.5 kg
- Required Motor : 3 to 5 HP
- Required Engine : Can Be Attached with Tractors
- Speed : 800 - 1200 RPM
- Delivery Output : 35-45 LPM
- Normal Working Pressure (PSI) : 300-400
- Body Material : Aluminum Die Cast
- Pump Material : Brass Coated Cast Iron
- Pulley Size : 7 Inch (17.7 cm)
- No. of Cock (Output Connections) : 2
- Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
- No. of Piston : 3
- Pump Oil Capacity : 900 ML (20W40)
- Spray Range (Vertically) : 15 to 22 Feet (approx)
- Max Hose Pipe Can Be Connect : 200 meter
Accessories
:- Suction Hose Pipe (3 Meter)
- Overflow Hose Pipe (3 Meter)
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:- Recommended usage :
- Vehicles (Cars, bikes etc) Washing.
- Agriculture spray in big farmland.
- Pressure cleaning.
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
