Engine Power required : 7 – 9 hp
Pump RPM : 800 - 1200
Output Pressure : 10 – 50 (Kg/cm2)
Suction Vol. : 65 – 80 (L/min)
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : KisanKraft

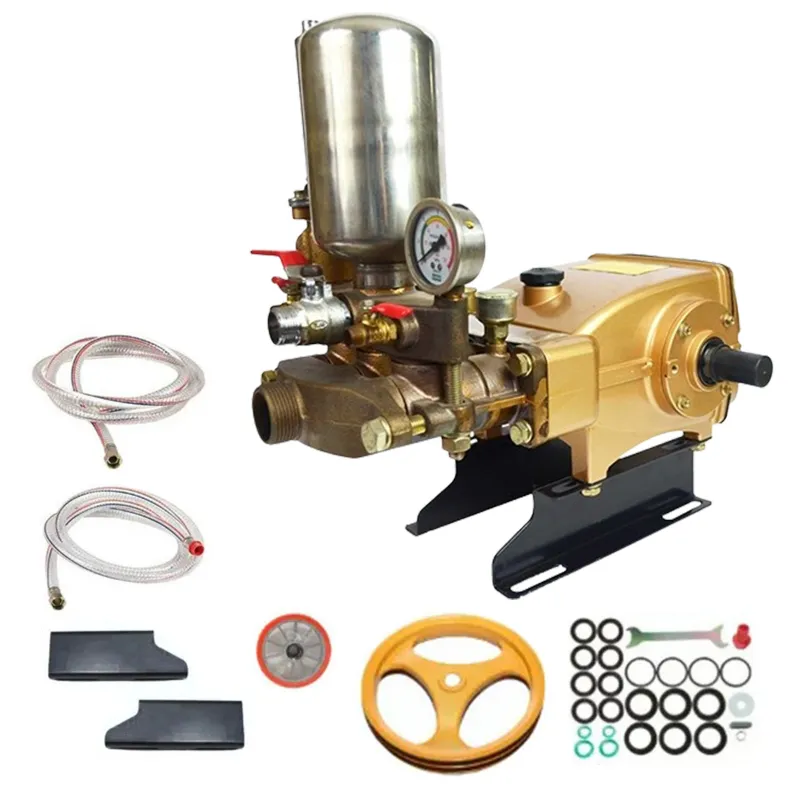

Kisankraft KK-80CI3, Cast Iron Body Tractor Mounded HTP Sprayer Suitable For 5 HP Motor & Tractor
SKU : BKS-MK-GT-KK-890
MRP : ₹18000
₹17500
3% OFF!
-
1
+
931 people have viewed this recently
Delivery By: Jun 21 - Jun 23
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: KisanKraft
- Weight (Approx.) : 22 kg
- Model No. : KK-80CI3
- Body Material : Cast Iron
- Pump Material : Brass
- Required Motor : 5 HP to 7 HP
- Required Engine : Can Be Attached with Tractors
- Pump : 800 - 1200 RPM
- Output Pressure : 10-50 Kg/cm2
- Suction Volume . : 65 – 80 (L/min)
- Pump Oil (Mixing) (20 W 40 Grade) : 1500 ml
- No. of Cock (Outlet Connections) : 3
- Hose Pipe Diameter : 8.5 MM & 10 MM (10 MM is preferable)
- No. of Piston : 3
- Spray Range (Vertically) : 20 - 30Feet (approx.)
- Max Hose Pipe Can Be Connect : 300 meter
Note : Colour of the Product may Vary
Description
Introducing the "HTP Pump without Motor/Engine" from Toolsvilla - a powerful and efficient solution for all your fluid transfer needs. Engineered with precision and durability, this high-quality pump delivers exceptional performance without the added weight and complexity of a built-in motor. Designed for versatility, the HTP Pump is compatible with a wide range of power sources, allowing you to seamlessly integrate it into your existing setup. Boasting a robust construction and reliable operation, this pump is the ideal choice for industrial, agricultural, and commercial applications. Whether you're transferring liquids, chemicals, or even viscous fluids, the HTP Pump ensures a smooth and controlled flow, making it a must-have addition to your toolbox. Experience the convenience and reliability of the "HTP Pump without Motor/Engine" from Toolsvilla. Order yours today and elevate your fluid management.
Features
:- Three people can spray at the same time.
- Useful for high pressure spraying
- Ideal for orchards and high terrains
- Light weight and compact construction
- Sturdy and rugged construction
- Heavy duty & stainless steel piston
- Also compatible with engine or motor
Accessories
:- Suction Hose Pipe
- Overflow Hose Pipe
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:- Vehicles (Cars, bikes, etc.) Washing
- Agriculture spray in big farmland.
- Pressure cleaning
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
