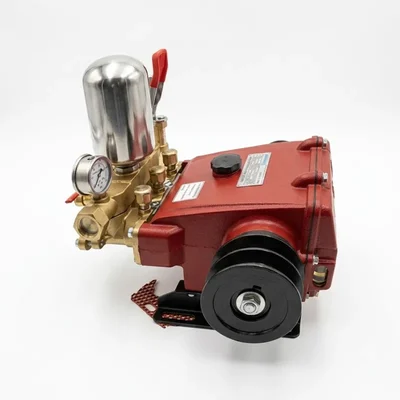

Hummer HTP 75 (CS-H75) 3-Piston Power Sprayer Pump

Agricultural & Commercial Washing Machine

With 8-Inch Pulley

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 12 kg

Model : CS-H75 (HTP 75)
Piston Configuration : 3 Pistons
Piston Size (Diameter x Stroke) : 30 mm x 20 mm
Operational Speed (RPM) : 800 - 1000 RPM
Suction Flow Rate (LPM) : 45 - 55 Liters Per Minute
Working Pressure Range : 15 - 35 kgf/cm²
Pump Pulley Size : 8 Inch
Drive Pulley Attachment : 4 Inch
Product Dimensions : 39 x 30 x 34 cm

The Hummer HTP 75 (Model: CS-H75) is a heavy-duty, commercial-grade horizontal triple-piston (HTP) power sprayer pump engineered for extreme durability and top-tier performance. Built for high-volume liquid discharge, this premium sprayer operates with an impressive suction capacity of 45 to 55 Liters Per Minute (LPM) and delivers an adjustable working pressure ranging from 15 to 35 kgf/cm². Whether you are managing large scale agricultural operations or running a commercial vehicle washing center, the Hummer HTP 75 provides the reliable force required to get the job done efficiently. Equipped with a robust 3-piston setup featuring a 30mm diameter and 20mm stroke, it guarantees consistent pressure output at an optimal speed of 800–1000 RPM. The unit features a standard 8-inch pump pulley paired with a versatile 4-inch drive pulley configuration, allowing for flexible connection setups with electric motors or diesel/petrol engines. Compact yet fiercely powerful, its footprint makes it an easy fit for both portable frame mounts and tractor attachments.

Features

Advanced Triplex Piston Tech: The three precision-engineered pistons minimize pressure fluctuations, offering a continuous, smooth jet stream.
Optimized Power Transfer: The balanced dual-pulley layout (8-inch pump pulley and 4-inch drive pulley) minimizes belt slippage and maximizes mechanical efficiency.
Excellent RPM Efficiency: Operates at low vibration levels between 800 and 1000 RPM, extending the overall lifespan of the internal components and bearings.
Corrosion-Resistant Components: Crafted from high-grade metals that resist harsh agricultural chemicals, pesticides, and hard water minerals.
Pressure Management Valve: Integrated control bypass knob lets you shift effortlessly between low-pressure irrigation and high-pressure jet washing.

Applications

Large-Scale Agricultural Spraying: Perfect for uniform application of pesticides, fungicides, and liquid fertilizers over expansive orchards, tea estates, and tall field crops.
Commercial Vehicle Wash Centers: Delivers the sustained high-pressure water jet required for washing cars, trucks, tractors, and heavy construction machinery.
Livestock & Poultry Farm Sanitation: Ideal for deep cleaning and disinfecting animal sheds, stables, and large dairy farming facilities.
Industrial Equipment Cleansing: Effectively blasts away stubborn grease, mud accumulation, and residues from heavy industrial shop floors and manufacturing machinery.
Public Health & Community Sanitization: Utilized by municipalities for large-scale outdoor misting, orchard mist-dusting, and wide area disinfection protocols.
