• Model : KK-PSE-22X3
• Related Power : 1.5 kw (2 HP)
• Motor Speed : 1400 RPM
• Pump Speed : 800-1000 RPM
• Output Pressure : 10-40 kg/cm2
• Suction Volume : 10-22 L/min
• Pump Body Material : Cast Iron
• Pump Material : Brass
• No. of Piston : 3
• No. of Cock (Outlet Connections) : 2
• Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
• Pump Oil Capacity : 700 ml (20W40)

Features

• High Pressure Output : The HTP pump generates high pressure, allowing for effective spraying over large areas.
• Durability : Built with robust materials, the pump and motor are designed to withstand harsh agricultural conditions and frequent use.
• Versatility : Capable of handling various liquids, including pesticides, fertilizers, and water, making it suitable for multiple applications.
• Efficiency : The design maximizes coverage while minimizing labor and time spent on spraying tasks.
• Motor Options : Available in electric variants, providing flexibility based on user needs and location.
• Adjustable Pressure : The pressure regulator allows users to customize the output pressure for different spraying requirements.
• Portability : Many models feature wheels or handles for easy transport across different areas of a farm or garden.

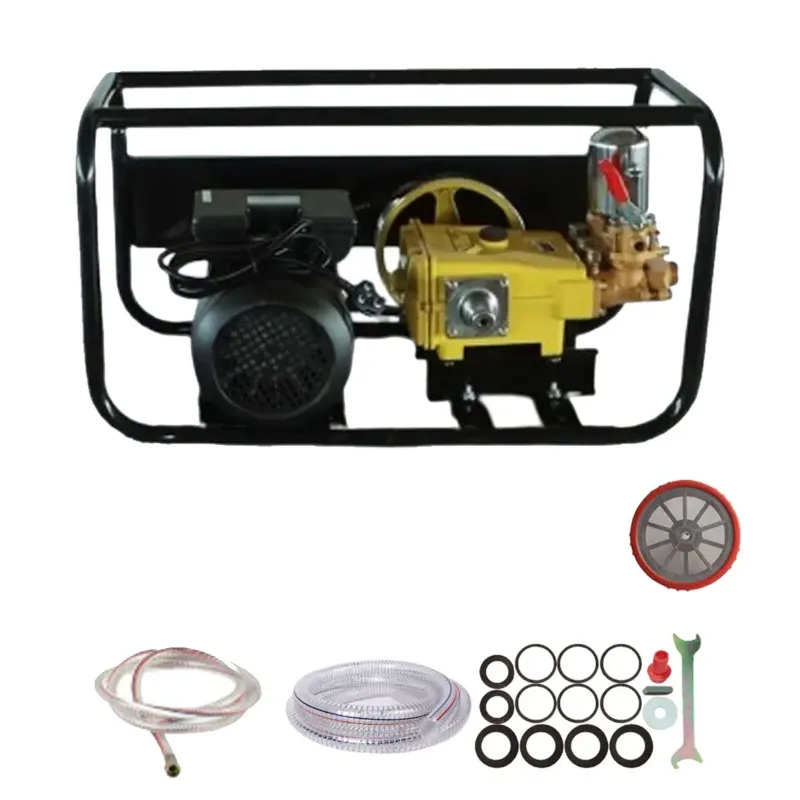

Accessories

Applications

• Agriculture Pest Spraying.
• Horticulture Pest Spraying.
• Chemical Spraying in long trees like Palm, Mango, Areca nut etc.
• Cleaning.
• Car washing.
• Industrial High pressure washing.

Usage

• Agriculture Pest Spraying.
• Horticulture Pest Spraying.
• Chemical Spraying in long trees like Palm, Mango, Areca nut etc.
• Cleaning.Before you start:
  • Attach the inlet pipe, overflow pipe, and hose pipe.
  • Connect the motor with the required electricity connection.
  • Be sure about safety precautions.
  Starting the machine:
  • Turn on the power supply to start the motor.
  How to stop the machine:
  • Switch off the circuit breaker or power switch that supplies electricity to the pump. This will immediately cut off power to the motor, stopping it from running.
• Car washing.
• Industrial High pressure washing.
