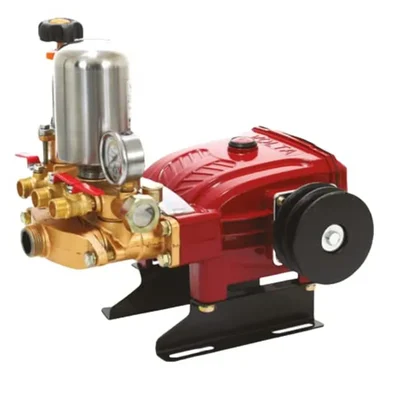

Heavy Duty Tractor Mounted HTP-150 Sprayer Suitable For All Types of Heavy Agriculture Use

• Model No. : HTP 150
• Attached with: Tractor
• Speed : 800-1400 RPM
• Suction Volume : 100-150 LPM (approx)
• Body Material : Aluminum Die Cast
• Pump Material : Brass Coated Cast Iron
• No. of Cock (Outlet Connections) : 3
• Pulley size : 5 inch (12.7 cm)
• Hose Pipe Diameter :  8.5 mm & 10 mm ( 10 mm is preferable)
• No. of Piston: 3
• Spray Range ( vertically) : 25-35 Feet (approx.)
• Max Hose Pipe can be Connect : 500 meter

Features

• High Efficiency and Performance : The tractor mounted HTP (High-Pressure) pump is designed to operate efficiently, providing a reliable solution for various agricultural applications.
• Compatibility with Tractors : This type of pump is specifically designed to be mounted on tractors, making it easy to integrate into existing farming equipment.
• Durable Construction : Constructed from high-quality materials, these pumps are built to withstand harsh agricultural environments.
• Adjustable Pressure Settings : Allowing users to customize the spray intensity based on the specific requirements of different crops or tasks.
• Easy Installation and Operation : User-friendly controls that simplify operation, making them accessible even for those with limited experience.
• Cost-Effective Solution : By utilizing a tractor’s existing power source rather than requiring a separate engine or motor, these pumps present a cost-effective solution for farmers looking to enhance their spraying capabilities without incurring additional fuel costs.

Accessories

• Suction Hose Pipe
• Overflow Hose Pipe
• Pulley
• Filter
• Tool Kit & Washer
• User Manual


Applications

• Vehicles (Cars, bikes etc) Washing.
• Agriculture spray in big farmland.
• Pressure cleaning.

Usage

• Step 1 : Attach the inlet pipe, overflow pipe , hose pipe, motor or engine  with HTP pump.
• Step 2 : Mount the HTP pump with Tractor

• Step 3 : Connect with electricity if mounted with motor or pour the fuel in fuel tank  if connected with the engine.
• Step 4 : Now add engine oil in engine oil chamber accordingly and start the engine.
• Step 5 : Be sure about safety precautions.
• Step 6 : Do your work as per your needs.
