Brand: Pilot

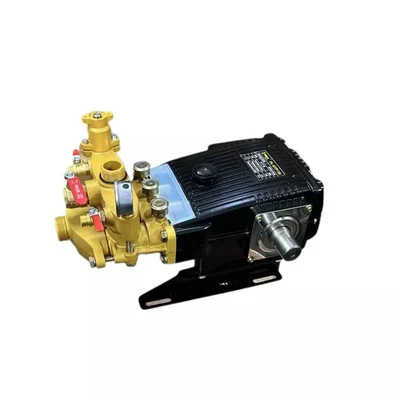

Pilot HTP 120 , 7.5-10 HP Power Sprayer Pump for Agricultural Spraying and High Pressure Cleaning | PL-HTP150
SKU: TI-PH-51615
Delivery By: Dec 11 - Dec 13
MRP : ₹21100 ₹16200
23% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16200 (Including GST)
MRP : ₹21100
23% OFF!
Get Extra ₹243 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 120 , 7.5-10 HP Power Sprayer Pump for Agricultural Spraying and High Pressure Cleaning | PL-HTP150
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 11 kg
- Power range: 7.5 to 10 HP
- Operating speed: 800 to 1000 RPM
- Plunger stroke: 3x38 mm
- Suction capacity: 103 to 116 L/min
- Adjustable pressure range: 1.0 to 5.0 MPa
- Durable ripped body design for heavy-duty use
- Efficient 3-plunger mechanism for smooth operation
- Suitable for large-scale agricultural spraying and high-pressure cleaning tasks
- Low maintenance and reliable performance in tough field conditions
- Compatible with tractor mounting and portable power sources for versatile applications
Description
The Pilot HTP 120 Power Sprayer Pump (PL-HTP150) is a heavy-duty 7.5-10 HP pump engineered for large-scale agricultural spraying and high-pressure cleaning. It features a 3x38mm plunger stroke, 800-1000 RPM operation, 103-116 L/min suction capacity, and adjustable 1.0-5.0 MPa pressure for efficient pesticide application, irrigation, and pest control in expansive fields.
Features
:- Power Range: 7.5-10 HP for heavy-duty agricultural tasks.
- RPM: Variable 800-1000 for adjustable flow and pressure control.
- Plunger Stroke: 3x38 mm for reliable and consistent operation.
- Suction Capacity: 103-116 L/min for high-volume liquid intake.
- Pressure Range: Adjustable 1.0-5.0 MPa for versatile spraying needs.
- Durable Build: High-quality materials for long-lasting performance in tough conditions.
- 3-Plunger Design: Ensures smooth, efficient spraying across large areas.
Applications
:- Large-Scale Fields: Applying pesticides, herbicides, and fertilizers over expansive agricultural areas for uniform crop protection.
- Irrigation Networks: Delivering consistent water flow across large fields for optimal crop growth.
- Plantations: Pest management and fertilization in tea, coffee, and other commercial plantations.
- Orchards: High-pressure spraying in fruit orchards and high terrains for effective coverage.
- High-Pressure Cleaning: Vehicle washing, surface cleaning, and industrial sanitation tasks.
Usage
:- Setup and Assembly: Mount the pump securely to the engine base, connect suction and delivery hoses, install appropriate nozzles, and ensure all fittings are tight before operation.
- Priming and Filling: Fill the tank with clean water for testing, then add diluted agrochemicals; prime by running the engine briefly to establish flow and check for leaks.
- Pressure Adjustment: Use regulators to set pressure between 1.0-5.0 MPa based on crop needs, monitoring gauges for steady output during spraying.
- Spraying Operation: Maintain consistent RPM (800-1000), spray at optimal nozzle angles for even coverage, and avoid windy conditions to minimize drift.
- Post-Use Cleaning: Rinse tank, pump, hoses, and nozzles thoroughly with clean water; inspect and lubricate parts to prevent residue buildup and ensure longevity.
- Safety Measures: Wear PPE (gloves, goggles, masks), follow chemical labels, and perform pre-checks on equipment for safe, efficient use.
