Brand: Pilot

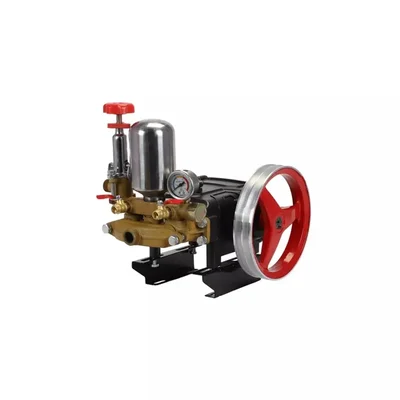

Pilot HTP 22 , 1.5-2 HP Power Sprayer Pump for Agricultural Spraying and High Pressure Cleaning | PL-HTP50
SKU: TI-PH-51570
Delivery By: Dec 11 - Dec 13
MRP : ₹5900 ₹4500
24% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4500 (Including GST)
MRP : ₹5900
24% OFF!
Get Extra ₹68 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 22 , 1.5-2 HP Power Sprayer Pump for Agricultural Spraying and High Pressure Cleaning | PL-HTP50
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 9 kg
- Engine power: 1.5-2 HP
- Engine speed: 800-1200 RPM
- Plunger stroke: 3 x 22 mm
- Suction capacity: 13-22 liters per minute
- Working pressure: 1.0 to 4.0 MPa (10-40 bar)
- Suitable for spraying pesticides, herbicides, and fungicides
- Durable stainless steel and brass construction for longevity
- Designed for use in crop spraying, large plantations, and high-pressure cleaning tasks
Description
The Pilot HTP 22 (PL-HTP50) is a robust 1.5-2 HP power sprayer pump designed for high-pressure agricultural spraying of pesticides, herbicides, fungicides, and fertilizers, as well as cleaning tasks in demanding farm environments. Featuring a 3x22mm plunger stroke, 800-1200 RPM operation, 13-22 L/min suction capacity, and adjustable pressure up to 4.0 MPa, it ensures consistent flow and coverage for large plantations and crops. Built with durable materials like stainless steel and brass components, this versatile pump supports efficient crop protection and maintenance.
Features
:- Powerful 1.5-2 HP operation at 800-1200 RPM for robust performance in demanding agricultural tasks.
- Adjustable pressure from 1.0-4.0 MPa with 13-22 L/min suction and 3x22mm plunger stroke for precise control.
- Durable construction using high-quality stainless steel and brass components to withstand harsh farm environments.
- High-efficiency flow suitable for pesticides, herbicides, fungicides, and high-pressure cleaning applications.
- Versatile design ideal for crop spraying, orchards, plantations, and equipment maintenance.
Applications
:- Crop fields for even delivery of pesticides, herbicides, fungicides, and liquid fertilizers to promote healthier yields.
- Orchards and large plantations for high-pressure spraying on trees like fruit, coconut, and rubber.
- Foliar feeding and irrigation support in horticulture and nurseries for precise nutrient distribution.
- Farm equipment cleaning and maintenance tasks requiring high-volume, consistent pressure.
Usage
:- Mount the pump securely to a suitable engine or electric motor ensuring proper alignment and belt tension.
- Connect the suction pipe, overflow pipe, and hose pipe firmly to prevent leaks.
- Start the engine or power source, and adjust the pump speed to between 800-1200 RPM for optimal performance.
- Use the pressure adjuster and cock valve to control and start the spray flow, maintaining pressure typically between 1.0-4.0 MPa according to the spraying needs.
- Spray evenly over crops, orchards, or surfaces while maintaining steady movement.
- After spraying is finished, pull the pressure adjuster up and flush the system thoroughly with fresh water to clean all chemical residues.
- Regularly check and maintain air filters, spark plugs, carburetor settings, and engine oil for long-lasting efficient pump operation.
