Brand: Pilot

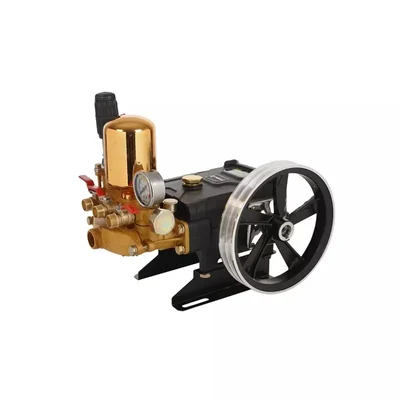

Pilot HTP 30 , 3 - 5 HP Power Sprayer Pump Golden Color for Agricultural Spraying and High Pressure Cleaning | PL-HTP80
SKU: TI-PH-51587
Delivery By: Dec 11 - Dec 13
MRP : ₹9200 ₹7050
23% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7050 (Including GST)
MRP : ₹9200
23% OFF!
Get Extra ₹106 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 30 , 3 - 5 HP Power Sprayer Pump Golden Color for Agricultural Spraying and High Pressure Cleaning | PL-HTP80
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 11 kg
- Power: 3.0-5 HP (2.2-3.7 kW)
- Engine Speed: 800-1200 RPM
- Plunger Stroke: 3 x 30 mm
- Suction Capacity: 20-35 liters per minute
- Working Pressure: 1.0-4.0 MPa (10-40 bar)
- Body Color: Golden
- Suitable for: Small-scale irrigation, water distribution, pesticide, herbicide, and fertilizer spraying
- Construction: Heavy-duty with durable materials for long-lasting performance
Description
The Pilot HTP 30 Golden Color Power Sprayer Pump (PL-HTP80) is a heavy-duty 3-5 HP (2.2-3.7 kW) pump for agricultural spraying of pesticides, herbicides, and fertilizers, plus high-pressure cleaning. It operates at 800-1200 RPM with 20-35 L/min suction, 1-4 MPa adjustable pressure, and HTP No. 30 design in durable golden finish for reliability in farms and plantations.
Features
:- Heavy-duty golden color construction with reinforced crankcase and 3x30mm plungers for durability in intensive farm use.
- 3-5 HP power (2.2-3.7 kW) at 800-1200 RPM, delivering 20-35 L/min suction for high-volume spraying.
- Adjustable pressure of 1.0-4.0 MPa supports versatile applications from crop protection to cleaning.
- Efficient design ensures reliable operation across small-scale irrigation, plantations, and pest control tasks.
- Compatible with engines, motors, or tractors for flexible setup in agricultural environments.
Applications
:- Large agricultural fields for spraying pesticides, herbicides, and fertilizers to protect extensive crops.
- Orchards, nurseries, and horticulture sites for precise pest control and nutrient application.
- Small-scale irrigation and water distribution in farms and gardens.
- High-pressure cleaning, mist fogging, and disinfection in agricultural settings.
Usage
:- Ensure all fasteners are tight and the pump is securely mounted on the frame; set pulleys in a straight line with proper belt tension to avoid slippage.
- Tighten all hose joints to prevent leaks before operation.
- Before starting the motor, shut off the cock valve, loosen the pressure adjusting screw, and pull the pressure adjuster to the top position.
- Start the motor and operate within 800-1200 RPM; press the pressure adjuster down and adjust the pressure screw to maintain around 21-35 kg/cm² as needed.
- Open the cock valve to start spraying evenly across the target area, moving steadily to ensure uniform coverage.
- After completing spraying, pull the pressure adjuster up, run clean water through the system to clear chemical residues, and perform routine maintenance checks on the engine, spark plugs, air filters, and carburetor.
- Regularly replace engine oil and grease pump components as per the maintenance schedule for prolonged pump life.
