Brand: Pilot

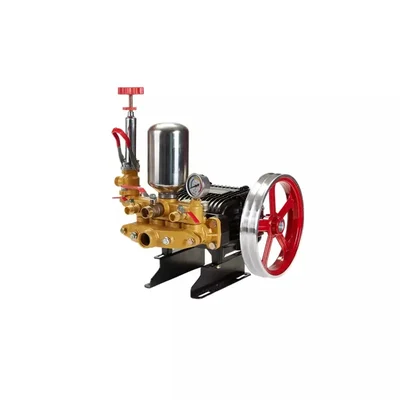

Pilot HTP 30 , 5-7.5 HP Power Sprayer Pump with 4 Plunger for Agricultural and High Pressure Spraying | PL-HTP120
SKU: TI-PH-51609
Delivery By: Dec 11 - Dec 13
MRP : ₹14300 ₹11000
23% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹11000 (Including GST)
MRP : ₹14300
23% OFF!
Get Extra ₹165 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 30 , 5-7.5 HP Power Sprayer Pump with 4 Plunger for Agricultural and High Pressure Spraying | PL-HTP120
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 11 kg
- Power: 5.0-7.5 HP (3.7-5.6 kW).
- RPM: 800-1200.
- Plunger stroke: 4 x 30 mm.
- Suction capacity: 20-45 L/min.
- Working pressure: 1.0-5.0 MPa.
- Model: PL-HTP120, HTP No. 30 with 4 plungers for heavy-duty agricultural spraying.
- Country of origin: India, suitable for pesticides, herbicides, and high-pressure tasks.
Description
The Pilot HTP 30 Power Sprayer Pump with 4 Plunger (PL-HTP120) is a heavy-duty agricultural sprayer pump delivering 5-7.5 HP power, designed for high-pressure spraying tasks. It operates at 800-1200 RPM and features a 4 x 30 mm plunger stroke for efficient liquid suction of 20-45 L/min. The pump provides an adjustable pressure range of 1.0 to 5.0 MPa, ensuring versatile use for pesticides, herbicides, and fertilizers over large crop fields. Built for durability and reliability, it supports demanding farm spraying and high-pressure cleaning applications.
Features
:- High-capacity 4-plunger design (4 x 30 mm stroke) for superior suction of 20-45 L/min and robust performance.
- Powerful 5-7.5 HP operation at 800-1200 RPM with adjustable pressure up to 5.0 MPa for intensive spraying.
- Heavy-duty construction ensures durability in harsh agricultural conditions and high-pressure cleaning.
- Versatile for large-scale pesticide, herbicide, and fertilizer applications across extensive fields.
- Compatible with engines or tractors for flexible farm setups and efficient coverage.
Applications
:- Large-scale agricultural fields for spraying pesticides, herbicides, and fertilizers to protect crops.
- Orchards and plantations for effective pest control and nutrient application over fruit and cash crops.
- Irrigation and foliar feeding in horticulture and nurseries for uniform nutrient distribution.
- High-pressure cleaning, mist fogging, and disinfection tasks in agricultural and garden settings.
- Suitable for use in forestry, sericulture, and garden maintenance to ensure plant health.
Usage
:- Ensure the sprayer and motor are firmly installed on the frame, with pulleys aligned and belt tensioned appropriately.
- Tighten all hose joints to prevent leaks before operation.
- Before starting, close the cock valve, loosen the pressure adjusting screw, and pull the pressure adjuster to the top position.
- Start the motor, maintain the proper RPM (800-1200), press the pressure adjuster down, and adjust the pressure screw to maintain 21-35 kg/cm² pressure for spraying.
- Open the cock valve to start spraying, moving steadily to ensure uniform coverage.
- After spraying, pull the pressure adjuster up and flush the system with clean water to remove chemical residues.
- Regularly perform maintenance: check fuel mixture, clean the air filter and spark plug, adjust the carburetor, and change engine oil as needed for sustained performance.
