Brand: Pilot

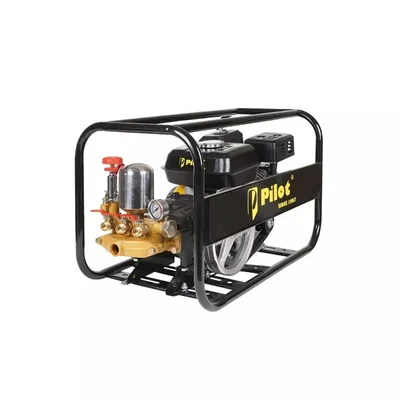

Pilot HTP 30 , 7.5 HP Petrol Engine Sprayer with Pump Set for Agricultural and High Pressure Spraying | PL-PS75
SKU: TI-PH-51620
Delivery By: Dec 11 - Dec 13
MRP : ₹19200 ₹14700
23% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹14700 (Including GST)
MRP : ₹19200
23% OFF!
Get Extra ₹221 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP 30 , 7.5 HP Petrol Engine Sprayer with Pump Set for Agricultural and High Pressure Spraying | PL-PS75
Country of origin: China
Specifications
- Brand: Pilot
- Weight (Approx.) : 29 kg
- Model: PL-PS75
- Engine Power: 7.5 HP, 4-Stroke, Air-Cooled, 163cc
- RPM Range: 800-1200 RPM
- Pump Type: HTP 30 No., Triple Plunger (3x30mm Brass-Coated)
- Suction Capacity: 20-35 LPM (up to 40 LPM)
- Working Pressure: 1.0-4.0 MPa
- Dimensions: 40x40x20 cm
- Weight: 15 kg
Description
The Pilot HTP 30, 7.5 HP Petrol Engine Sprayer with Pump Set (PL-PS75) is a robust, high-pressure power sprayer designed for large-scale agricultural applications like crop protection, pest control, and fertilizer distribution in fields, orchards, and plantations. Equipped with a 4-stroke air-cooled petrol engine operating at 800-1200 RPM, it features a durable brass-coated triple-piston HTP 30 pump delivering 20-35 LPM suction and adjustable pressure up to 4.0 MPa for uniform coverage and efficiency.
Features
:- Powerful 7.5 HP 4-Stroke Engine: Delivers reliable performance at 800-1200 RPM for demanding agricultural tasks.
- HTP 30 Triple Plunger Pump: Features 3x30mm brass-coated pistons for efficient 20-35 LPM suction and adjustable 1-4 MPa pressure.
- High-Pressure Spraying: Achieves up to 4.0 MPa for uniform coverage in crop protection, pest control, and foliar feeding.
- Durable Ripped Body Design: Robust construction ensures longevity in fields, orchards, and plantations.
- Versatile Applications: Ideal for pesticides, herbicides, fertilizers, and light irrigation across large areas.
Applications
:- Large Fields: Spraying pesticides, herbicides, and fertilizers for crop protection in extensive agricultural areas.
- Orchards and Plantations: Precise application of chemicals to protect fruit trees and cash crops from pests.
- Horticulture and Nurseries: Uniform distribution in greenhouses, gardens, and nursery cultivation.
- Sericulture and Forestry: Pest control and foliar feeding in mulberry fields and forest areas.
- Light Irrigation: Supplemental water and nutrient delivery across farms and gardens.
Usage
:- Preparation: Mix pesticides, herbicides, or fertilizers in a separate container per label instructions, then pour through strainer into the sprayer tank; ensure engine has fresh petrol and oil.
- Startup: Secure all hoses and nozzles, start the 7.5 HP petrol engine at 800-1200 RPM, and prime the HTP 30 pump by running briefly to build 1-4 MPa pressure.
- Spraying: Direct adjustable nozzle for uniform coverage over crops, maintaining pressure by monitoring engine RPM; spray in calm weather for fields or orchards.
- Pressure Release and Cleaning: Shut off engine, release pressure by squeezing trigger away from body, rinse tank and parts with water, and lubricate seals with silicone grease.
- Maintenance: Check plunger strokes (3x30mm), clean strainer daily, and store in dry area to prevent corrosion on brass-coated parts.
