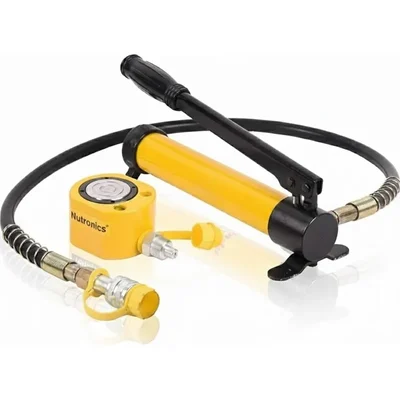

Nutronics 20-Ton 12mm Stroke Ultra-Thin Single-Acting Hydraulic Lifting Cylinder Ram Jack with CP-180 Hand Pump
SKU: TI-N2-76868
Estimated Delivery By: Jul 17 - Jul 19
MRP : ₹16800 ₹12399
26% OFF!
Estimated Delivery By: Jul 17 - Jul 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹12399 (Including GST)
MRP : ₹16800
26% OFF!
Get Extra ₹186 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
This is a professional-grade, 20-ton ultra-thin hydraulic lifting cylinder ram featuring a short 12mm stroke and an auto spring-return system. Shipped complete with a manual CP-180 hand pump, it is designed for maximum lifting power in highly constricted industrial spaces.
Country of origin: China
Specifications
- Brand: Nutronics
- Weight (Approx.) : 7.9 kg
- Load Capacity : 20 ton
- Lifting Capacity : 20 ton
- Lifting Range : 12 milimeters
- Product Type: Ultra-Thin Hydraulic Cylinder Ram Jack with Hand Pump
- Load / Lifting Capacity: 20 Ton (40,000 lbs)
- Piston Ram Stroke Length: 12 mm
- Maximum Structural Lifting Height: 55 Millimetres (55mm closed-to-extended height ceiling)
- Material Selection: High-Grade Stainless Steel / Heavy-Duty Metal
- Operation Mode: Single-Acting Manual Hydraulic
- Return Type: Internal Mechanical Spring Return
- Color Scheme: Industrial Yellow & Black
- Mounting Type: Dual Hole Fixed Layout (Multi-Directional Placing)
- Compatible Vehicle Services: Sport Utility Vehicles (SUVs), Heavy Trucks, Industrial Moving Rigging
Description
The NUTRONICS Ultra-Thin Hydraulic Cylinder Jack and Pump Combo is a professional-grade fluid power solution engineered to deliver massive lifting forces in tightly confined, narrow spaces. Capable of hoisting an impressive 20-ton (40,000 lbs) heavy load with a precision 12mm ram stroke, this low-profile pancake-style cylinder is ideal for heavy structural applications where standard, bulky hydraulic jacks simply cannot fit. The system features a single-acting hydraulic cylinder integrated with a heavy-duty internal spring-return mechanism.
Features
:- Massive 20-Ton Heavy Lift: Engineering-grade fluid ram capable of raising and positioning structures or vehicles up to 20 Tons (40,000 lbs).
- Ultra-Thin Low Profile Architecture: Specially designed for high-stress applications in highly constricted spaces where standard lifting tools fail to clear.
- Efficient Spring-Return Design: Single-acting cylinder utilizes an automatic internal spring return that retracts the lifting piston instantly once fluid pressure drops.
- Corrosion-Proof Baked Paint Finish: Crafted with high-grade structural metal protected by a baked-enamel paint coat that prevents rust and abrasive friction wear.
- Multi-Directional Fixed Mounting: Features dual baseline mounting holes allowing the cylinder block to safely operate upside down, angled, or horizontally.
- Integrated Contamination Dust Ring: Built with a specialized face wiper dust ring to drastically reduce fluid pollution and prolong internal seal life.
Applications
:- Perfect for narrow clearance concrete pre-cast lifting, girder leveling, and structural alignment in bridge engineering.
- Ideal for structural building rehabilitation, foundation lifting, and heavy machinery leveling across industrial plants.
- Highly effective for underneath chassis lifting, transmission box positioning, and frame straightening for large Sport Utility Vehicles (SUVs) and commercial trucks.
Usage
:- System Coupling: Interlock the quick-connect coupler of the CP-180 pump hose firmly onto the fluid intake port of the FPY-20 ultra-thin cylinder jack.
- Mounting Positioning: Place the low-profile pancake cylinder directly flat beneath the load. If necessary, utilize the dual integrated mounting holes to bolt the ram securely sideways or upside down.
- Closing the Circuit: Firmly tighten the manual pressure release valve knob on the CP-180 pump body by rotating it fully clockwise.
- Lifting Action: Actuate the pump handle lever smoothly. The hydraulic fluid will force the stainless steel piston ram upward through its 12mm stroke to safely elevate the 20-ton load up to a total height of 55mm.
- Spring Retraction: Slowly turn the pump release valve knob counter-clockwise. The built-in heavy spring return will automatically retract the piston down into the block frame while driving the oil cleanly back to the pump reservoir.
