Brand: Generic

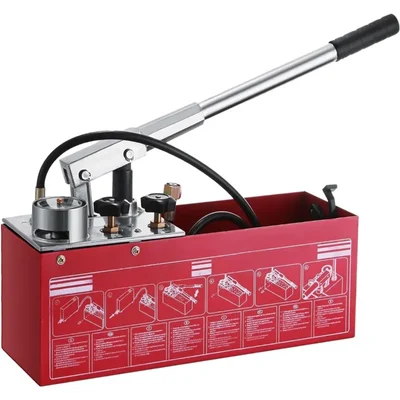

Hydraulic Pressure Test Pump 50 Bar 726 PSI 3.2 Gallon Tank 45ML 1/2 BSP Hydrostatic Manual Tester for Irrigation Pipeline
SKU: SI-HP-81754
Estimated Delivery By: Aug 29 - Aug 31
MRP : ₹13779 ₹10599
23% OFF!
Estimated Delivery By: Aug 29 - Aug 31 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹10599 (Including GST)
MRP : ₹13779
23% OFF!
Get Extra ₹159 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
50 Bar hydrostatic manual pump.
3.2 Gallon steel fluid tank.
1/2 inch BSP thread connection.
Ideal for pipeline pressure testing.
3.2 Gallon steel fluid tank.
1/2 inch BSP thread connection.
Ideal for pipeline pressure testing.
Country of origin: India
Specifications
- Brand: Generic
- Weight (Approx.) : 9 kg
- Pressure Range: 0 to 50 Bar (0 to 726 PSI)
- Tank Capacity: 12 Liters (3.2 Gallons)
- Flow Volume per Stroke: 45 ml
- Outlet Connection: R 1/2" BSP
- Container Material: Alloy Steel with corrosion-resistant finish
- Operation Mode: Manual Hand Operated
- Valve Type: Double Lock-Off Valve System
Description
This manual hydrostatic pressure test pump is engineered for accurate and safe pressure testing across water lines, industrial containers, plumbing installations, and firefighting systems. Featuring a dual-valve testing system, it allows precise measurement calibration and self-checking pressure hold functions. Built with a heavy-duty steel water tank designed for low-temperature resistance, it provides reliable performance in harsh work environments. The ergonomic handle design minimizes manual pumping effort, while its compact, self-contained footprint ensures easy field transport.
Features
:- Engineered with a dual valve system to guarantee accurate self-checking pressure and leak measurement results
- Constructed with a robust steel fluid container featuring low-temperature resistance for demanding field conditions
- Designed with an ergonomic long lever handle for reduced manual effort during high-pressure operations
- Incorporates standard 1/2 inch BSP connection threads for universal compatibility with standard piping systems
- Portable and lightweight self-contained manual design for rapid site deployment without electrical power
Applications
:- Laboratory-based hydrostatic testing of pressure vessels, industrial pipes, and fluid containment systems
- Precision leak verification for educational engineering labs and fluid mechanics quality control testing
- Pipeline pressure calibration, irrigation system verification, and fire safety equipment maintenance testing
- Hydraulic line integrity validation under regulated laboratory conditions
Usage
:- Connect the high-pressure hose firmly to the pipeline or vessel using the standard 1/2 inch BSP thread
- Fill the 12-liter steel tank with testing fluid and open the system bleed valves to purge entrapped air
- Operate the hand lever pump continuously until the target testing pressure up to 50 bar is displayed on the gauge
- Lock the dual valve system to hold the static pressure for the designated duration while observing for pressure drops
Maintenance
:- Drain remaining water from the steel reservoir after every use to prevent internal rust buildup
- Periodically check and replace rubber O-rings and thread seals to prevent high-pressure leakage
- Lubricate the pump piston rod and pivot points regularly with light machine oil
- Store in a dry indoor area protected from freezing temperatures and aggressive chemical vapors
