Brand: Toshweld

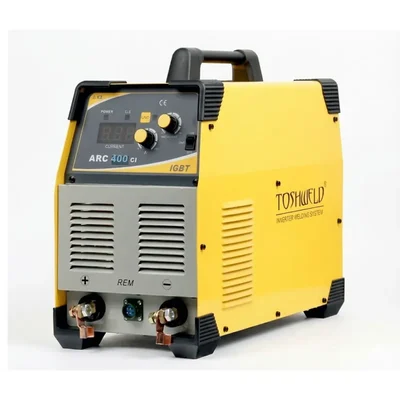

Toshweld 400 Amp 3 Phase IGBT Welding Machine With 1 Year Warranty (ARC 400 CI)
SKU: TI-T4-51479
Delivery By: Dec 9 - Dec 11
MRP : ₹34838 ₹26799
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹26799 (Including GST)
MRP : ₹34838
23% OFF!
Get Extra ₹402 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 415V ± 15% (3 Phase)
Output Current Range 30 - 400 Amps
Technology IGBT Module
Warranty 1 Year
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 16 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model : ARC 400 CI
- Technology : IGBT Module
- Input Voltage : AC 415V ± 15% (3 Phase)
- Output Current Range : 30 - 400 Amps
- Plate Thickness Capacity : 2.0 mm - 20.0 mm
- Compatible Electrode Size : 2.0 mm - 4.0 mm
- No-Load Voltage : 68 V
- Input Power Capacity : 18.2 KVA
- Rated Input Current : 17 A
- Power Factor : 0.93
- Dimensions : 19.5" x 9.5" x 17.5"
- Warranty : 1 Year
Description
Unleash extreme industrial power with the Toshweld ARC 400 CI. Featuring advanced IGBT Module technology, this heavy-duty 3-Phase welder delivers a consistent 400 Amp output. Built for continuous operation, it effortlessly welds thick plates up to 20mm. Weighing 16kg, it combines robust durability with portable efficiency. Includes 1-year warranty.
Features
:- Advanced IGBT Module Technology Uses heavy duty industrial modules to provide superior reliability, heat management, and arc stability compared to standard single boards
- Extreme Welding Power Delivers a massive 400 Amp output capable of deep penetration on very thick steel plates up to 20mm
- Heavy Duty Cycle Engineered for continuous high current operation in harsh industrial environments like shipyards and manufacturing plants
- High Energy Efficiency Features a 0.93 power factor to maximize electrical usage and reduce operating costs during heavy usage
- Robust Industrial Build Designed with a tough 16kg chassis to withstand physical impacts and vibration in tough job sites
Applications
:- Heavy Steel Structure Fabrication
- Shipbuilding and Marine Engineering
- Industrial Boiler and Pressure Vessels
- Cross Country Pipelines
- Mining and Earthmoving Equipment Repair
Note : 1 Year Warranty From Toshweld Brand.
Usage
:Usage Guidance (How to use) :
- Power Connection Connect strictly to a 415V 3-Phase industrial supply with appropriate cabling to handle the 18.2 KVA load
- Electrode Selection Use heavy duty welding rods up to 4.0mm or 5.0mm suited for high current and deep penetration jobs
- Amperage Setting Adjust the current dial towards the higher range for thick plates ensuring deep fusion of the base metals
- Safety Compliance Always wear industrial grade protective gear including a high shade helmet and leather aprons due to intense heat
Maintenance Guidance :
- Air Cooling Blow dry compressed air through the vents weekly to keep the large heat sinks and modules free of dust
- Terminal Inspection Check the output terminals frequently as high current causes heat expansion and potential loosening
- Dry Storage Store the machine in a moisture free industrial cabinet to protect the electronic modules from corrosion
