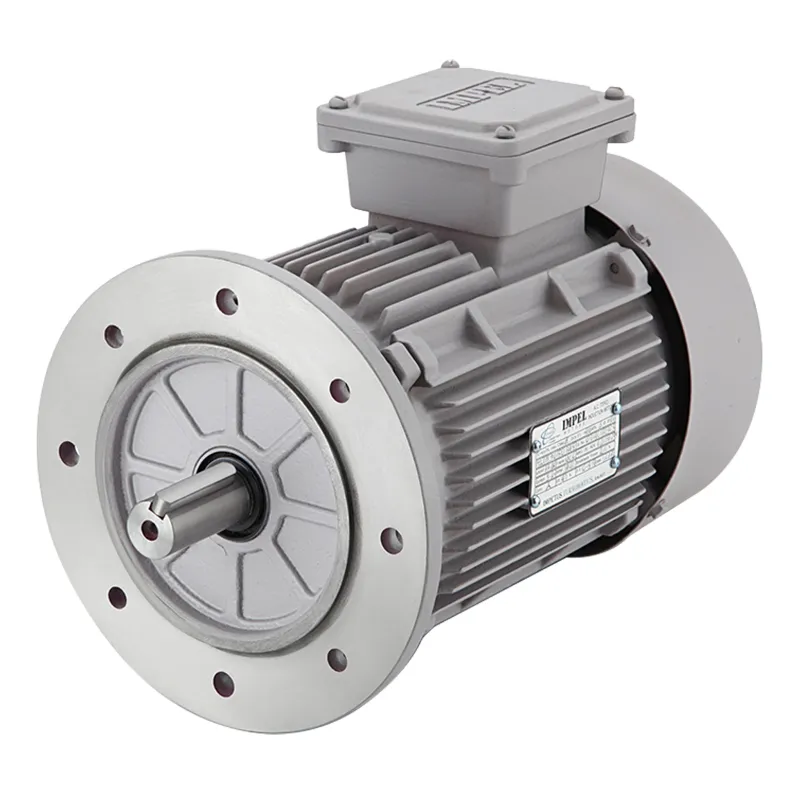

Impel IE2 Series 0.5 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU : TI-II-15154
MRP : ₹7000
₹4999
29% OFF!
-
1
+
569 people have viewed this recently
Get Extra ₹75 OFF on Prepaid Orders
Delivery By: Nov 4 - Nov 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 0.5Hp Flange Mounted 3Phase AC Induction Motor
4 Pole, Copper Winding
This motor is suitable for Dairy Machines, Milk Transfer Machines, Grinders, Compressors, etc.
2 Years Of Warranty
Country of origin: India
Specification
  • Brand: Impel
  • Power : 0.5 hp
  • Weight (Approx.) : 12 kg
  • Winding Material : Copper
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 0.5 HP (0.37 kW)
  • No Of Poles : 4
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 1.2 Ampere
  • Speed : 1440 RPM
  • Mounting Type : B5 Flange
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 71
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
Description
A flange-mounted AC induction motor is an electric motor where the motor's front end has a mounting flange that directly bolts to the driven equipment. This design provides a secure, compact, and often more precise alignment between the motor and the machine it powers, commonly found in pumps, gearboxes, and industrial machinery.

Features

 :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Applications

 :
  • This motor is suitable for Dairy Machines, Milk Transfer Machines, Grinders, Air Compressors, Medical Instruments, Small-Size Machines etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
