Brand : Impel

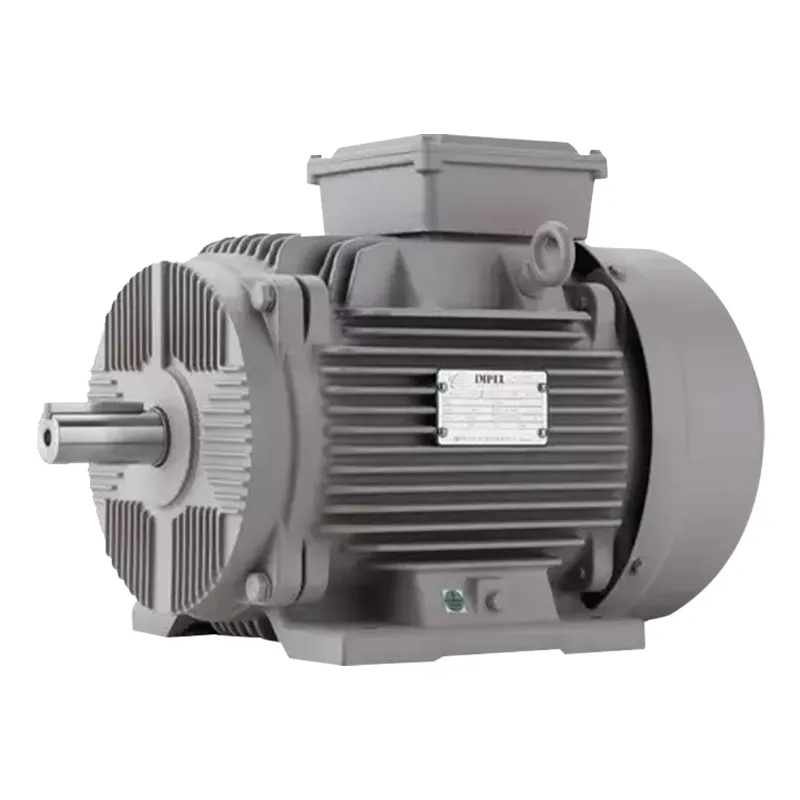

Impel IE2 Series 0.5 HP Three Phase 6 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU : TI-II-15249
MRP : ₹11000
₹6650
40% OFF!
-
1
+
Get Extra ₹100 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 0.5 Hp Foot Mounted 3 Phase AC Induction Motor
6 Pole, Copper Winding
This motor is suitable for Dairy Machines, Milk Transfer Machines, Grinders, Compressors, etc.
2 Years Of Warranty
Country of origin: India
Specification
Description
Impel IE2 Series 0.5 HP Three Phase 6 Pole Foot Mounted AC Induction Motor With 2 Years Warranty

Features :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Specification :
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 0.5 HP (0.37 kW)
  • No Of Poles : 6
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 1.2 Ampere
  • Speed : 960 RPM
  • Mounting Type : B3 Foot
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 80
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
  • Weight : 18 Kg (Approx.)

Areas Of Application :
  • This motor is suitable for Dairy Machines, Milk Transfer Machines, Grinders, Air Compressors, Medical Instruments, Small-Size Machines etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
