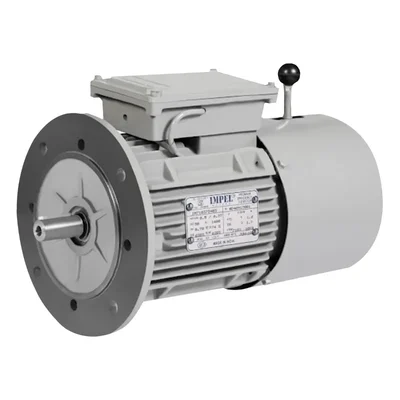

IMPEL 1.5 Hp Flange Mounted 3 Phase AC Induction Motor With DC Brake

4 Pole, Copper Winding

This motor is suitable for Textile, Grinders, Threshers, Rice Hullers, Garage Compressor, Sugarcane Crusher etc.

2 Years Of Warranty

Country of origin: India

Brand: Impel
Power : 1.5 hp
Weight (Approx.) : 22 kg
Winding Material : Copper

Product Type : AC Induction Motor With DC Brake
Brand : IMPEL
Power : 1.5 HP (1.1 kW)
No Of Pole : 4
Winding : Copper
Electricity Connection : Three Phase
Rated Voltage : 415 Volt (± 10% )
Frequency : 50Hz ( ± 5% )
Current Rating : 2.4 Ampere
Speed : 1440 RPM
Mounting Type : B5 Flange
Body Material : Casting
Standard : IS12615:2018
Frame : 90S
IP Rating : IP55
Insulation Class : F
Duty Cycle : S1/S4 Compatible
Ambient Temperature : 50°C
Enclosure : TEFC (Total Enclose Fan Cooled)
Cooling Method : IC411 (Shaft Mounted Fan)

IMPEL - brake motors are asynchronous three-phase totally enclosed fan cooled motors. The braking action is always obtained through a very quick and precise stop, thereby guaranteeing a safe and prompt intervention in the event of an unforeseen power supply failure.
These kinds of motors work best in situations when precise and rapid braking are necessary.
A brake motor is a three-phase induction motor with standard size and output rating that has been adapted for use in braking applications. The three phase AC current or DC current via a rectifier in the terminal box powers the electro-magnetic disc brake. Spring pressure activates the brake when the brake coil is de-energized.
