Brand: Impel

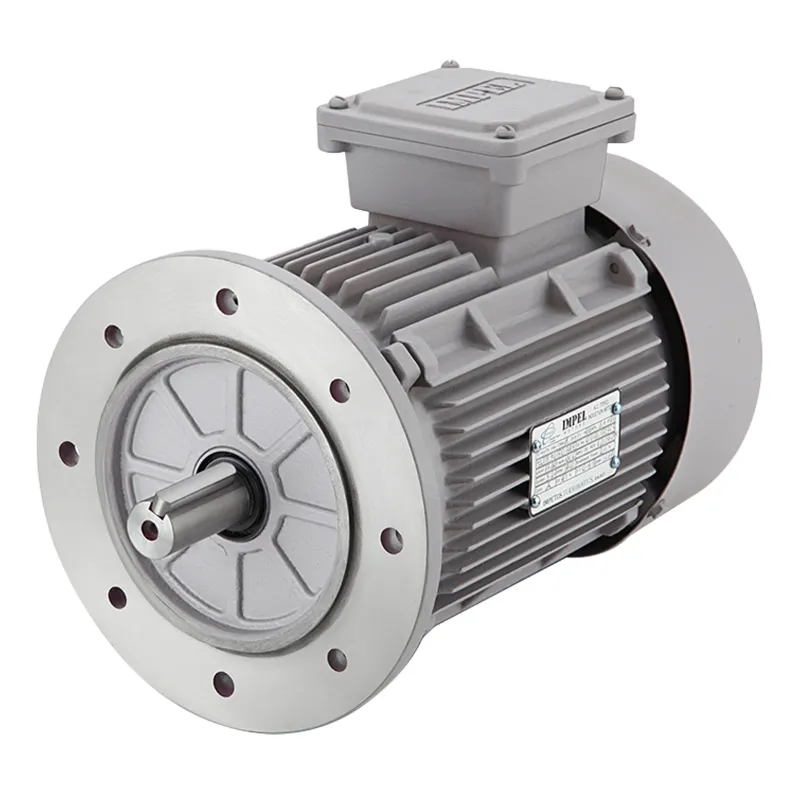

Impel IE2 Series 1 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU: TI-II-15157
623 people have viewed this recently
Delivery By: Dec 20 - Dec 22
MRP : ₹8600 ₹6949
19% OFF!
623 people have viewed this recently Delivery By: Dec 20 - Dec 22 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹6949 (Including GST)
MRP : ₹8600
19% OFF!
Get Extra ₹104 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
IMPEL IE2 Series 1Hp Flange Mounted 3Phase AC Induction Motor
4 Pole, Copper Winding
This motor is suitable for Textile, Grinders, Threshers, Garage Compressor, Sugarcane Crusher etc.
2 Years Of Warranty
Country of origin: India
Specifications
- Brand: Impel
- Power : 1 hp
- Weight (Approx.) : 17 kg
- Winding Material : Copper
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 1 HP (0.75 kW)
- No Of Poles : 4
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 1.8 Ampere
- Speed : 1440 RPM
- Mounting Type : B5 Flange
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 80
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
Description
A flange-mounted AC induction motor is an electric motor where the motor's front end has a mounting flange that directly bolts to the driven equipment. This design provides a secure, compact, and often more precise alignment between the motor and the machine it powers, commonly found in pumps, gearboxes, and industrial machinery.
Features
:- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Applications
:- This motor is suitable for Textile, Grinders, Threshers, Garage Compressor, Sugarcane Crusher etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
