Brand : Impel

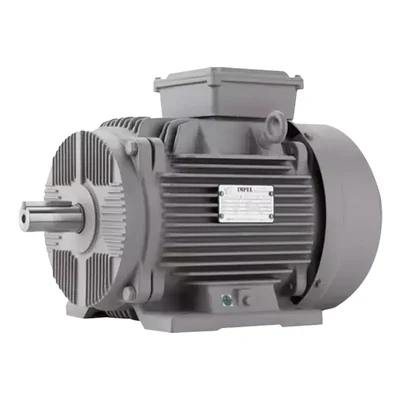

Impel IE2 Series 15 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU : SI-I1-13649
MRP : ₹70000
₹43600
38% OFF!
-
1
+
Get Extra ₹654 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 15Hp Three Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Lifts, Cranes, Hoists, Crushers, Textiles etc.
2 Years Of Warranty
Country of origin: India
Specification
Description
Impel IE2 Series 15 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty

Features :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Specification :
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 15 HP (11 kW)
  • No Of Pole : 2
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Rated Current : 20 Amp.
  • Frequency : 50Hz ( ± 5% )
  • Speed : 2880 RPM
  • Mounting Type : B3 Foot
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 160M
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
  • Dimension (LxWxH) : 43 X 71 X 48 Cm
  • Weight : 115 Kg (Approx.)

Areas Of Application :
  • This 15Hp motor is suitable for Lifts, Cranes, Hoists, Large exhaust fans, Lathe machines, Crushers, Oil extracting mills, Textiles etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
