Brand: Impel

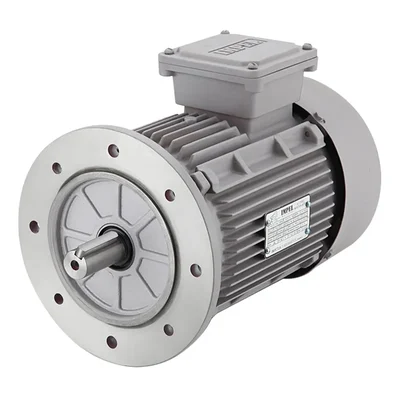

Impel IE2 Series 2 HP Three Phase 2 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU: TI-II-14835
Delivery By: Dec 19 - Dec 21
MRP : ₹11250 ₹9399
16% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9399 (Including GST)
MRP : ₹11250
16% OFF!
Get Extra ₹141 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
IMPEL IE2 Series 2Hp Flange Mounted 3 Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Crane, Grinders, Threshers, Compressor, Crusher etc.
2 Years Of Warranty
Country of origin: India
Specifications
- Brand: Impel
- Power : 2 hp
- Weight (Approx.) : 23 kg
- Winding Material : Copper
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 2 HP (1.5 kW)
- No Of Poles : 2
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 3.1 Ampere
- Speed : 2880 RPM
- Mounting Type : B5 Flange
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 90S
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Dimension (LxWxH) : 38 x 22 x 28 Cm
Description
A flange-mounted AC induction motor has a special flat plate (flange) on its body, allowing it to be directly and securely bolted onto a machine or piece of equipment . They are widely applied in pumps, fans, compressors, and conveyor systems, providing compact and stable power solutions.
Features
:- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Applications
:- This 2 Hp motor is suitable for Textile Industry, Crushers, Machine Tools, Cranes, Material Handling, Small compressors, Conveyors etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
