Brand : Impel

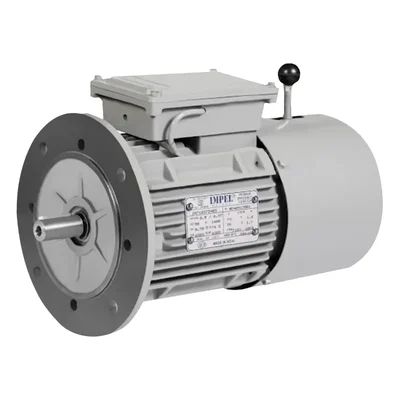

Impel 2 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With DC Braking System - 2 Years Warranty
SKU : TI-I2-15491
MRP : ₹31500
₹23500
25% OFF!
-
1
+
Get Extra ₹353 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL 2 Hp Flange Mounted 3 Phase AC Induction Motor With DC Brake
4 Pole, Copper Winding
This motor is suitable for Textile, Crushers, Machine Tools, Cranes, Material Handling, Compressors, Conveyors etc.
2 Years Of Warranty
Country of origin: India
Specification
Description
Impel 2 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With DC Braking System - 2 Years Warranty

Description :
  • IMPEL - brake motors are asynchronous three-phase totally enclosed fan cooled motors. The braking action is always obtained through a very quick and precise stop, thereby guaranteeing a safe and prompt intervention in the event of an unforeseen power supply failure.
  • These kinds of motors work best in situations when precise and rapid braking are necessary.
  • A brake motor is a three-phase induction motor with standard size and output rating that has been adapted for use in braking applications. The three phase AC current or DC current via a rectifier in the terminal box powers the electro-magnetic disc brake. Spring pressure activates the brake when the brake coil is de-energized.

Specification :
  • Product Type : AC Induction Motor With DC Brake
  • Brand : IMPEL
  • Power : 2 HP (1.5 kW)
  • No Of Pole : 4
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 3.2 Ampere
  • Speed : 1440 RPM
  • Mounting Type : B5 Flange
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 90L
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1/S4 Compatible
  • Ambient Temperature : 50°C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
  • Weight : 24 Kg (Approx.)

Areas Of Application :
  • This motor is suitable for Textile Industry, Crushers, Machine Tools, Cranes, Material Handling, Small compressors, Conveyors etc.

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
