Brand : Impel

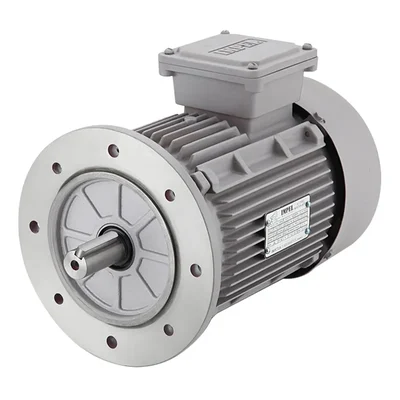

Impel IE2 Series 25 HP Three Phase 2 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU : TI-II-15020
MRP : ₹65000
₹56600
13% OFF!
-
1
+
Get Extra ₹849 OFF on Prepaid Orders
Delivery By: Jul 25 - Jul 27
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 25 Hp Flange Mounted 3 Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Lifts, Crane, Textile, Hoists, Compressor, Crusher Atta Chakki etc.
2 Years Of Warranty
Country of origin: India
Specification
  • Brand: Impel
  • Power : 25 hp
  • Weight (Approx.) : 145 kg
  • Winding Material : Copper
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 25 HP (18.5 kW)
  • No Of Poles : 2
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 33.1 Amp.
  • Speed : 2880 RPM
  • Mounting Type : B5 Flange
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 160L
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
Description
A flange-mounted AC induction motor has a special flat plate (flange) on its body, allowing it to be directly and securely bolted onto a machine or piece of equipment . They are widely applied in pumps, fans, compressors, and conveyor systems, providing compact and stable power solutions.

Features

 :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Applications

 :
  • This motor is suitable for Lifts, Cranes, Hoists, Large exhaust fans, Lathe machines, Crushers, Oil extracting mills, Textiles, Atta Chakki, Domestic Flour Mill, Chaff Cutter Machine, Compressor, Thresher, Gearboxes, Conveyors, General Machinery, etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
