Brand : Impel
Impel IE2 Series 3 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU : SI-I3-13644
MRP : ₹18000
₹11000
39% OFF!
-
1
+
867 people have viewed this recently
Get Extra ₹165 OFF on Prepaid Orders
Delivery By: Nov 23 - Nov 25
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

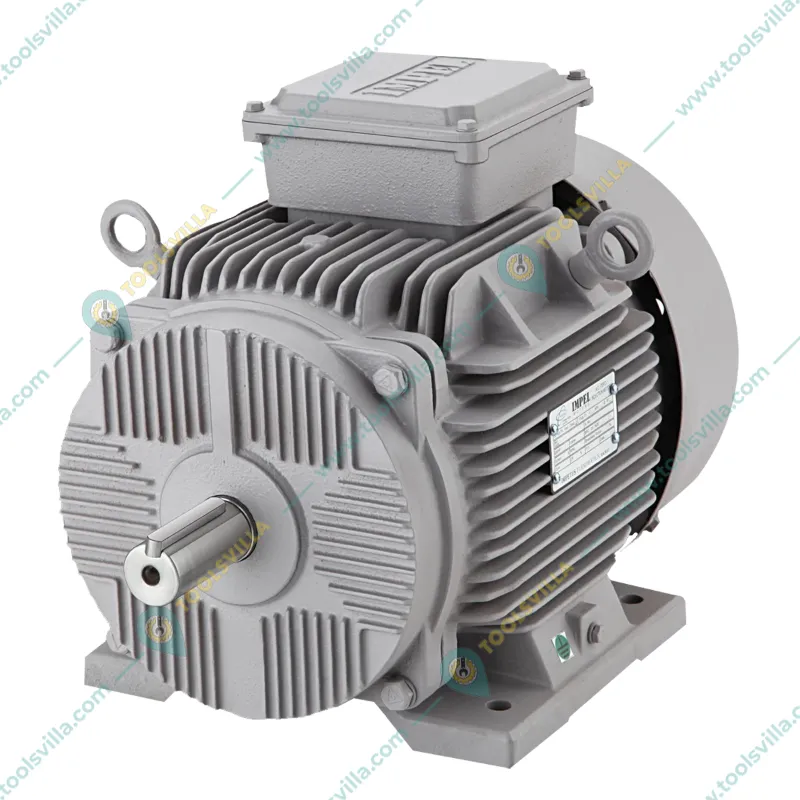

IMPEL IE2 Series 3Hp Three Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Textile, Crushers, Cranes, Tower Hoist, compressors, Threshers etc.
2 Years Of Warranty
Country of origin: India
Specification
  • Brand: Impel
  • Power : 3 hp
  • Weight (Approx.) : 25.00 kg
  • Winding Material : Copper
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 3 HP (2.2 kW)
  • No Of Pole : 2
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 4 Ampere
  • Speed : 2880 RPM
  • Mounting Type : B3 Foot
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 90L
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
  • Dimension (LxWxH) : 22 X 38 X 28 Cm
Description
A foot-mounted AC induction motor, also known as a base-mounted or horizontal-mounted motor, features mounting feet or a base directly integrated into its housing. These feet allow the motor to be securely bolted onto a flat surface or foundation, providing stable support for a wide range of industrial and commercial applications.

Features

 :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Applications

 :
  • This 3 Hp motor is suitable for Chaff Cutter Machine, Domestic Flour Mill, Tower Hoist, Textile, Grinders, Threshers, Garage Compressor, Sugarcane Crusher, Machine Tools, Material Handling etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

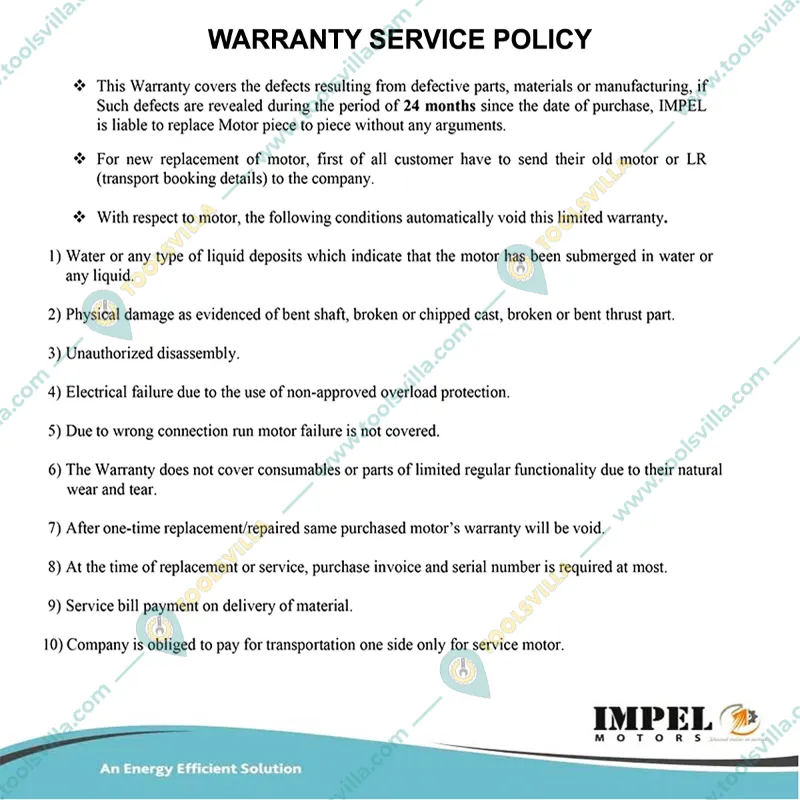

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
