Brand : Impel

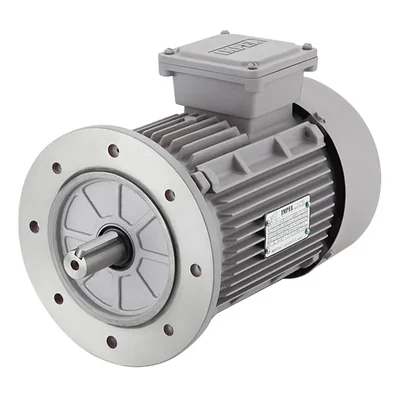

Impel IE2 Series 40 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU : TI-II-15241
MRP : ₹220000
₹129000
41% OFF!
-
1
+
Get Extra ₹1,935 OFF on Prepaid Orders
Delivery By: Aug 4 - Aug 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 40 Hp Flange Mounted 3 Phase AC Induction Motor
4 Pole, Copper Winding
This motor is suitable for Atta Chakki, Chaff Cutter, Crane, Textile, Threshers, Compressor, Lathe machine etc.
2 Years Of Warranty
Country of origin: India
Specification
  • Brand: Impel
  • Power : 40 hp
  • Weight (Approx.) : 240 kg
  • Winding Material : Copper
  • Series : IE2
  • Product Type : AC Induction Motor
  • Brand : IMPEL
  • Power : 40 HP (30 kW)
  • No Of Poles : 4
  • Winding : Copper
  • Electricity Connection : Three Phase
  • Rated Voltage : 415 Volt (± 10% )
  • Frequency : 50Hz ( ± 5% )
  • Current Rating : 55.5 Ampere
  • Speed : 1440 RPM
  • Mounting Type : B5 Flange
  • Body Material : Casting
  • Standard : IS12615:2018
  • Frame : 200L
  • IP Rating : IP55
  • Insulation Class : F
  • Duty Cycle : S1
  • Ambient Temperature : 50C
  • Enclosure : TEFC (Total Enclose Fan Cooled)
  • Cooling Method : IC411 (Shaft Mounted Fan)
Description
A flange-mounted AC induction motor is an electric motor where the motor's front end has a mounting flange that directly bolts to the driven equipment. This design provides a secure, compact, and often more precise alignment between the motor and the machine it powers, commonly found in pumps, gearboxes, and industrial machinery.

Features

 :
  • High Efficiency and Long Life Product
  • Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
  • High Torque Level.
  • High Power Factor.
  • Low Temperature Rise.
  • Minimum copper losses due to use of electrolytic grade of copper
  • Minimum friction losses with SKF/FAG
  • Easy maintenance
  • Minimum Pay Back Period

Applications

 :
  • This motor is suitable for Lifts, Cranes, Hoists, Large exhaust fans, Lathe machines, Crushers, Oil extracting mills, Textiles, Atta Chakki, Domestic Flour Mill, Chaff Cutter Machine, Air Compressor, Thresher, Gearboxes, Conveyors, General Machinery, etc.

Benefits :
  • Longer insulation and bearing lives
  • Lower heat output and less vibration
  • Extended winding life
  • Increased tolerance of overload conditions
  • Higher tolerance for increased voltage rates or phase imbalance

WARRANTY :
  • 2 Years Of Warranty As Per IMPEL Motors Policy.
