Brand: Impel
Impel IE2 Series 5 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU: SI-I5-13645
Delivery By: Jul 5 - Jul 7
MRP : ₹20500 ₹15300
25% OFF!
Delivery By: Jul 5 - Jul 7 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹15300 (Including GST)
MRP : ₹20500
25% OFF!
Get Extra ₹230 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
IMPEL IE2 Series 5Hp Three Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Atta Chakki, Chaff Cutter, Textile, Tower Hoist, Air Compressor, Thresher, etc.
2 Years Of Warranty
Country of origin: India
Specifications
Description

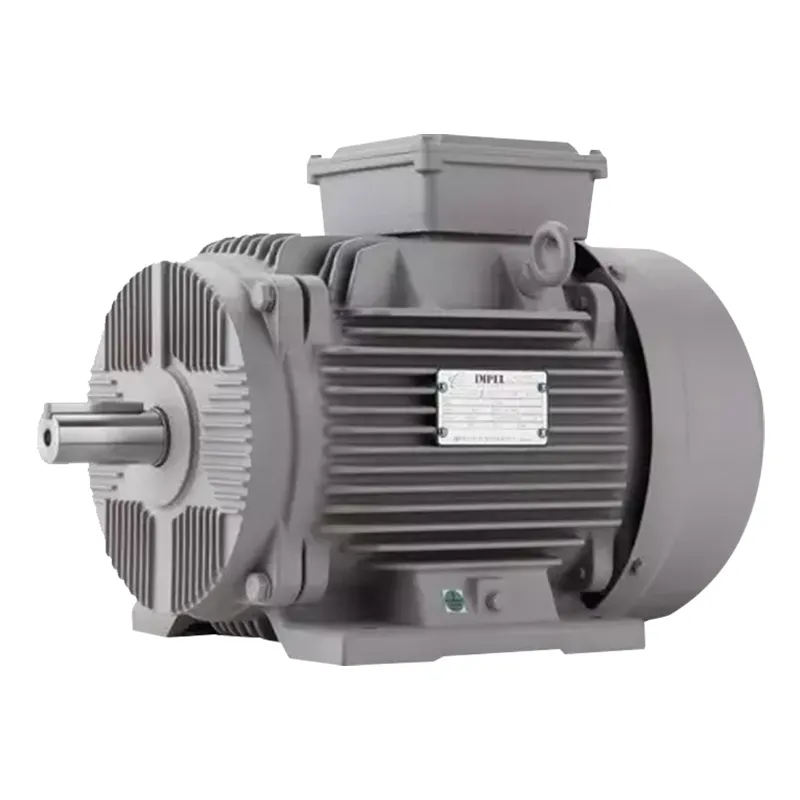

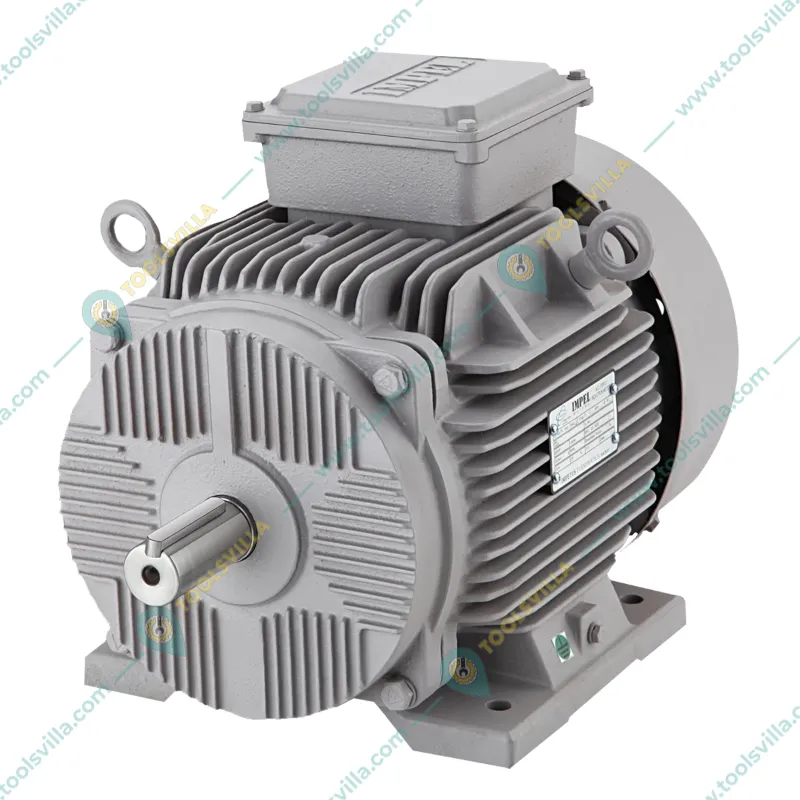

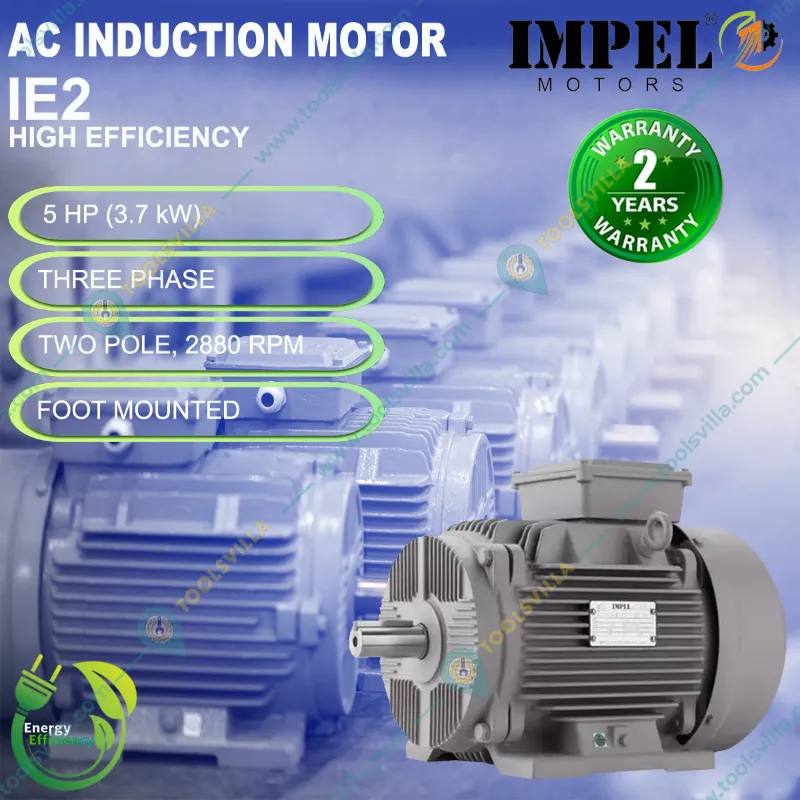

Impel IE2 Series 5 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
Features :
- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Specification :
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 5 HP (3.7 kW)
- No Of Pole : 2
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 7 Ampere
- Speed : 2880 RPM
- Mounting Type : B3 Foot
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 100L
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Dimension (LxWxH) : 30 X 43 X 34 Cm
- Weight : 36 Kg (Approx.)

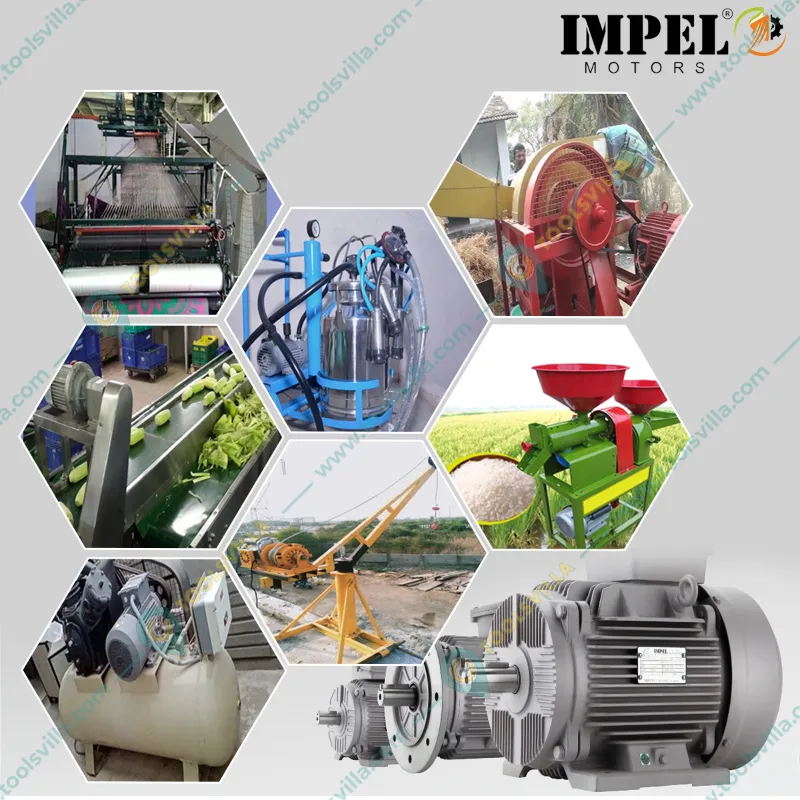

Areas Of Application :
- This 5 Hp motor is suitable for Atta Chakki, Domestic Flour Mill, Chaff Cutter Machine, Textile Industry, Tower Hoist, Air Compressor, Thresher, etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance

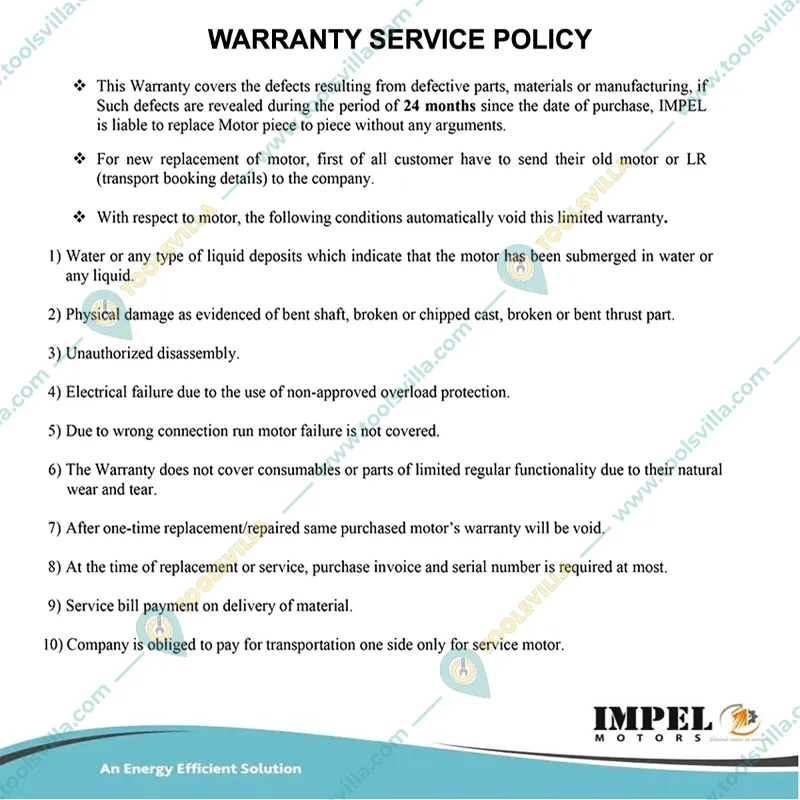

WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
