Brand: Impel

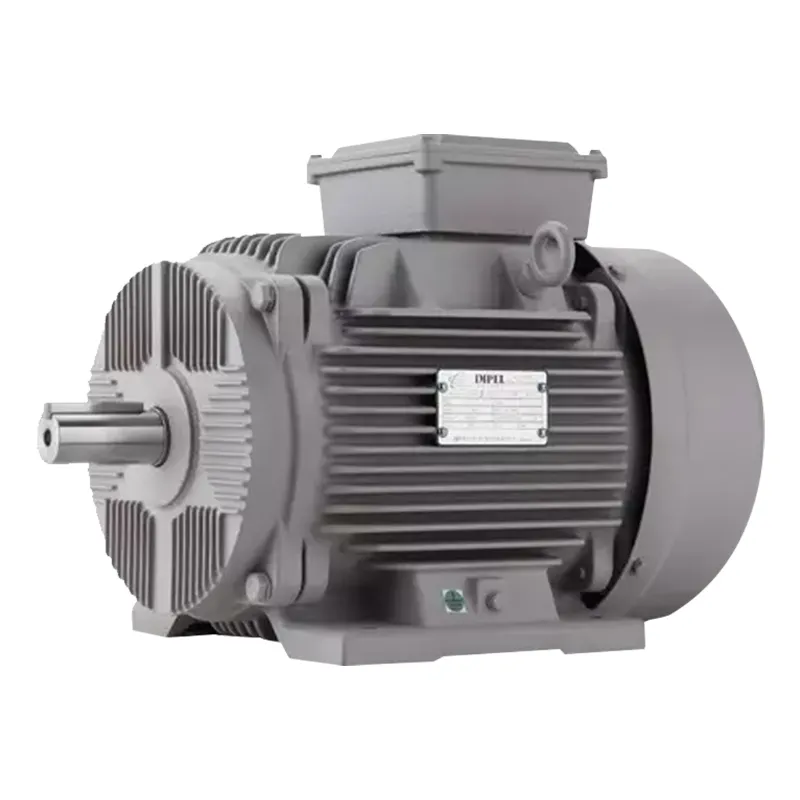

Impel IE2 Series 50 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU: TI-II-14816
₹141000 (Including GST)
MRP : ₹175000
Get extra ₹2,115 Discount (On Checkout)
Delivery By: May 27 - May 29
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 50Hp Three Phase AC Induction Motor
2 Pole, Copper Winding
This motor is suitable for Lathe machine, Textile, Threshers, Large exhaust fans, Crusher Atta Chakki etc.
2 Years Of Warranty
Country of origin: India
Description
Impel IE2 Series 50 HP Three Phase 2 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
Features :
- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Specification :
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 50 HP (37 kW)
- No Of Poles : 2
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 65.5 Ampere
- Speed : 2880 RPM
- Mounting Type : B3 Foot
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 200L
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Weight : 258 Kg (Approx.)
Areas Of Application :
- This 50 Hp motor is suitable for Lifts, Large exhaust fans, Lathe machines, Crushers, Oil extracting mills, Atta Chakki, Domestic Flour Mill, Chaff Cutter Machine, Textile Industry, Tower Hoist, Air Compressor, Thresher, Gearboxes, Conveyors, General Machinery, Mini Crane etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
Specifications
:- Brand: Impel
- Power : 50 hp
- Weight (Approx.) : 258 kg
- Winding Material : Copper
