Brand: Inder

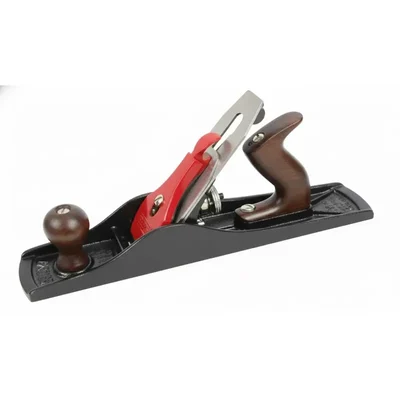

Inder 4(9 Inch) 45mm Iron Jack Plane P-95B – Heavy Duty 2.1Kg Woodworking Smoothing Tool
SKU: TI-I4-63795
Delivery By: Feb 13 - Feb 15
MRP : ₹1500 ₹1248
17% OFF!
Delivery By: Feb 13 - Feb 15 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹1248 (Including GST)
MRP : ₹1500
17% OFF!
Get Extra ₹19 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Inder 4(9 Inch) Iron Jack Plane P-95B delivers superior woodworking performance with 45mm blade and 225mm length in robust 2.1Kg cast iron construction.
Country of origin: India
Specifications
- Brand: Inder
- Weight (Approx.) : 2.1 kg
- Net Quantity : 1 pc
- Product Type: Iron Jack Plane
- Size: 4(9 Inch) / 22.86 cm
- Model No: P-95B
- Blade Width: 45 mm
- Overall Length: 225 mm
- Body Material: Cast Iron
- Blade Material: High-carbon Steel (Hardened)
Description
With a 45mm hardened blade and a 225mm overall length, the Inder P-95B Iron Jack Plane is a 4(9-inch) professional woodworking tool with a heavier 2.1 kg cast iron body that is ideal for demanding stock removal, jointing, and smoothing over hardwoods and construction lumber. With precisely adjustable depth and lateral controls for enhanced finish quality on doors, tabletops, and framing elements, this bigger jack plane is ideal for professional carpentry tasks that need for higher material removal rates and surface flattening capabilities. In joinery shops, cabinetmaking, and construction applications requiring classic plane durability, the robust iron construction, enhanced ergonomic handle, and precisely machined sole provide reliable heavy-duty performance.
Features
:- Robust, 45 mm wide, hardened, high-carbon steel blade for durable materials.
- For forceful wood removal, the 2.1 kg cast iron body offers exceptional weight.
- Mouth opening is completely adjustable, ranging from severe roughing cuts to exquisite finishes.
- The blade remains square throughout its breadth thanks to a precise lateral adjustment lever.
- Accurate surface leveling and jointing are ensured by the machined flat sole.
- Larger ergonomic handle design for long-term, pleasant work use.
- Shaving thickness is finely controlled by a fine depth adjustment screw.
- Lever cap in the classic Norris style with a robust cam locking mechanism.
- For clean cross and end grain, the blade bevel is ground at the ideal 25° angle.
- Chatter is reduced during heavy stock removal thanks to the reinforced frog assembly.
Applications
:- Rough construction lumber is dimensioned and heavy stock is removed.
- Expert frame jointing and door fitting require large cuts.
- Panel flattening and a large tabletop are used in furniture manufacturing.
- Duties related to edge preparation and face jointing in cabinetmaking.
- Before final assembly, lumber is trued on the construction site.
- Traditional heavy plane work is required for furniture repair jobs.
- Plank preparation and surface fairing in boatbuilding.
- General-purpose smoothing and leveling procedures in a joinery shop.
Usage
:- Before operating, check the blade's sharpness with a well honed 25-degree bevel.
- For rough stock removal, make the mouth opening wider; for finishing, make it narrower.
- For consistently paper-thin shavings, adjust the blade projection with the depth screw.
- Use a precise straight edge to ensure that the blade is square across the sole.
- Use bench dogs or holdfasts to firmly clamp the workpiece for stability.
- Use forceful downward pressure to execute full-length strokes from the board end.
- For initial leveling, plane diagonally across the grain; for final leveling, use straight grain.
- Regularly remove shavings from the sole, blade, and adjustments; store in oil.
