Brand: INGCO

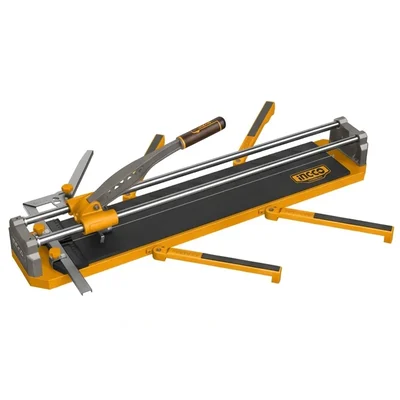

INGCO 1200mm Heavy-Duty Manual Tile Cutter Machine with Tungsten Carbide Ball Bearing Blade for Large Formats HTC12001
SKU: SI-HT-72621
Estimated Delivery By: Jun 23 - Jun 25
MRP : ₹8760 ₹7300
17% OFF!
Estimated Delivery By: Jun 23 - Jun 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7300 (Including GST)
MRP : ₹8760
17% OFF!
Get Extra ₹110 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The INGCO HTC12001 is an industrial-class 1200mm manual tile cutter featuring a 2mm thick steel bed and dual solid tracking rods for premium stability.
Equipped with a 22x6x2mm tungsten carbide ball bearing blade, it ensures clean, fluid scoring up to 14mm thick across a vast range of ceramic and porcelain tile formats.
Country of origin: China
Specifications
- Brand: INGCO
- Weight (Approx.) : 15.7 kg
- Size : 1400mm
- Net Quantity : 1 pc
- Model Number: HTC12001 (Product Identification)
- Operational Type: Manual Hand-Operated (Non-Electric Scoring Mechanism)
- Maximum Cutting Length: 1200mm (Nominal Value Subject to Normal Industrial Tolerances)
- Maximum Cutting Thickness: 14mm (Dependent on Material Density and Hardness)
- Blade Dimensions: 22 x 6 x 2 mm (Outer Diameter x Inner Bore x Thickness)
- Blade Material: Tungsten Carbide (Integrated Ball Bearing Mechanism)
- Rail Component Structure: Solid Core Steel Guide Rods (Nominal Manufacturer Layout)
- Base Thickness: 2mm (Heavy-Duty Steel Construction)
- Total Steel Base Footprint: 1400 x 200 mm (Overall Length x Bed Width)
- Packaging Medium: Commercial Full-Color Storage Box (Consumer Unit Shield)
Description
The INGCO HTC12001 Manual Tile Cutter is a heavy-duty scoring tool engineered to deliver reliable and precise clean cuts across large-format tiles. Designed with a robust 1400x200mm steel base and solid core guide rails, it supports an impressive maximum cutting capacity of up to 1200mm in length and up to 14mm in tile thickness. The integrated tungsten carbide ball bearing blade allows for smooth, fluid movement during intensive daily operations, making it an excellent choice for scaling professional commercial floor installations or complex home residential renovations.
Features
:- Extended Cutting Bed: Easily processes large-format wall and floor tiles with a generous maximum cutting length capacity of up to 1200mm.
- Tungsten Carbide Blade: Features a premium 22x6x2mm ball-bearing tracking wheel engineered for smooth, repetitive scoring passes and exceptional structural longevity.
- Heavy-Duty Foundation: Built on a robust 2mm thick steel platform measuring 1400x200mm to maximize operational stability and minimize unit flexing.
- Enhanced Material Thickness: Successfully scores and snaps rigid masonry materials, managing a maximum material thickness rating of up to 14mm under recommended operational force.
- Solid Core Rails: Guided by dual, heavy-set structural rods (referred to nominally as solid sedan rods) that prevent deflection and maintain straight scoring runs over extended travel.
- Retail-Ready Presentation: Delivered safely inside a high-visibility, protective manufacturer color box for secure transport and simplified asset storage.
Applications
:- Commercial Tile Installation: Ideal for setting out expansive flooring grids across airports, corporate complexes, and commercial retail malls using large-scale tiles.
- Residential Masonry Upgrades: Perfectly scaled to manage custom multi-format layout plans across kitchen backsplashes, large patio floors, and full bathroom suites.
- Professional Contracting Sites: Built for rapid-cycle onsite scoring tasks across demanding architectural fit-outs, industrial work environments, and new home developments.
Usage
:- Material Layout and Alignment: Position the raw tile flatly along the 1400mm steel platform, ensuring the target cutting path line seats neatly over the central metal breaking ridge.
- Fluid Surface Scoring: Grasp the heavy-duty handle lever firmly and apply steady downward pressure while drawing the tungsten carbide ball-bearing blade continuously forward across the tile surface in one smooth motion.
- Controlled Pressure Fracturing: Shift the breaker foot component securely over the front edge of the tile, then apply swift, controlled downward lever force to cleanly snap the tile along the pre-scored tracking line.
Maintenance
:- Keep the dual solid steel guide rods clean and free of abrasive dust buildup by wiping them down with a dry microfiber cloth after every shift.
- Periodically check the 22x6x2mm tungsten carbide blade for physical wear, ensuring it spins without resistance on its ball bearing to preserve clean scoring passes.
- Store the entire 15.7kg hand tool directly within its factory color box in a cool, low-humidity storage environment to protect the raw metal surfaces against long-term oxidation.
