Brand: Generic (Imported)

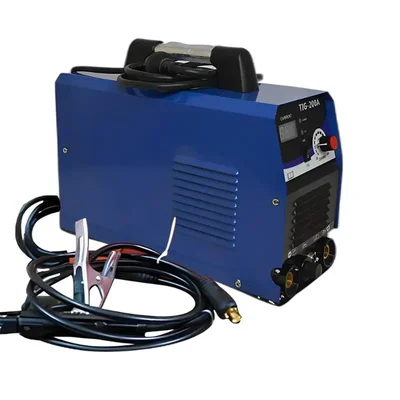

TIG-200A Single Phase 200 Amp Welding Machine with Mosfet Technology
SKU: w0025-ss
1070 people have viewed this recently
Delivery By: Dec 13 - Dec 15
MRP : ₹15000 ₹13990
7% OFF!
1070 people have viewed this recently Delivery By: Dec 13 - Dec 15 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹13990 (Including GST)
MRP : ₹15000
7% OFF!
Get Extra ₹210 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
200 Amp Mosfet Type TIG Welding Machine
Single Phase welding Machine
6 KVA Input Power Capacity
10-200A Current Adjust Range
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 8 kg
- Output Current Range : 200 amp
- Technology : MOSFET
- Model No. : TIG 200A
- Base Material : All Types of Carbon Steel, Stainless Steel, Low- alloy Steel
- Power Voltage : 230 V AC ± 15 %
- Electricity Connection : Single Phase
- Frequency : 50/60 Hz
- Input Current : 8 A
- Rated Input Power Capacity : 6 kVA
- No Load Voltage : 58 V
- Current Adjust Range : 10-200 A
- Duty Cycle : 60 %
- No Load Power : 35 W
- Efficiency : 85 %
- Power Factor : 0.93
- lnsulation Class : H
- Shell Protection Class : IP23
- Machine Cooling Mode : Air Cooled
- Tungsten Rod Diameter : 1.6-2.4 mm
- Switching Device : Mosfet
- Overall Dimension : (37l x 153 x 232) mm
Description
DC TIG and ARC (MMA) dual-purpose welding mechanism
Advance Inverter Technology
Auto protection of over-voltage and overcurrent
Outstanding welding Features in TIG & MMA with any type of electrodes, cellulosic included
Capable to work continuously
Minimal spatter reduces the cleaning time of parts and fixturing and improves arc feature and functioning
Supreme ignition feature, even with long TIG torches
High efficiency, high frequency, low electricity consumption
Light and handy for easy portability
Cut down overall heat input for superior weld feature, without burn-through or warping
.Fixed programmed post-flow timer to save tungsten tip, workpiece and torch
lnternational Standard IEC 60974-1 & ISO 9O01:2015 Certified
Advance Inverter Technology
Auto protection of over-voltage and overcurrent
Outstanding welding Features in TIG & MMA with any type of electrodes, cellulosic included
Capable to work continuously
Minimal spatter reduces the cleaning time of parts and fixturing and improves arc feature and functioning
Supreme ignition feature, even with long TIG torches
High efficiency, high frequency, low electricity consumption
Light and handy for easy portability
Cut down overall heat input for superior weld feature, without burn-through or warping
.Fixed programmed post-flow timer to save tungsten tip, workpiece and torch
lnternational Standard IEC 60974-1 & ISO 9O01:2015 Certified
Accessories
:- 1 x Welding Machine
- 1 x Operator's Manual
- 1 x Working Clamp
- 1 x Earthing Clamp
Usage
:- General fabrication
- Structural fabrication
- Field and repair jobs
- Gates and grills work
- Building &construction
- 0ffice & school supplies
- Electrical & mechanical repair
- Light engineering works
- Automotive and aircraft industry
- Shipbuilding Industry
