Brand: Generic (Imported)

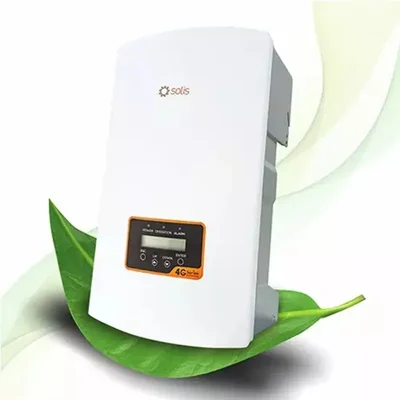

Solis 3P-10K-4G Three Phase Solar Inverters, Commercial Applications, Homes And Small Shops
SKU: TI-S3-63936
Delivery By: Feb 25 - Feb 27
MRP : ₹89700 ₹69000
23% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹69000 (Including GST)
MRP : ₹89700
23% OFF!
Get Extra ₹1,035 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Solis 3P-10K-4G Three Phase Solar Inverters
Commercial Applications, Homes And Small Shops
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 18 kg
- Model : Solis - 3P 10K-4G
Input DC :
- Recommended max. PV power : 12kW
- Max. input voltage : 1000V
- Rated voltage : 600V
- Start-up voltage : 180V
- MPPT voltage range : 160-850V
- Max. input current : 11A/11A
- Max. short circuit current : 17.2A/17.2A
- MPPT number/Max. input strings number : 2/2
Output AC :
- Rated output power : 10kW
- Max. apparent output power : 11kVA
- Max. output power : 11kW
- Rated grid voltage : 3/N/PE, 220/380V, 230/400V
- Rated grid frequency : 50/60Hz
- Rated grid output current : 15.2A/14.4A
- Max. output current : 15.9A
- Power Factor : >0.99 (0.8 leading - 0.8 lagging)
- THDi : <1.5%
Efficiency :
- Max. efficiency : 98.7%
- EU efficiency : 98.1%
General Data :
- Dimensions (W x H x D) : 310 x 563 x 219 mm
- Topology : Transformerless
- Self consumption : <1W (night)
- Operating ambient temperature range : -25 ~ +60°C
- Relative humidity : 0-100%
- Ingress protection : IP65
- Cooling concept : Natural convection
- Max. operation altitude : 4000m
Description
The Solis 3P-10K-4G is a high-performance, three-phase grid-tie solar inverter engineered for reliability and efficiency in small to medium-scale energy systems. With its 10kW rated output and dual MPPT design, it is a versatile solution for large residential homes, small retail shops, and commercial offices looking to maximize solar energy harvesting even with complex roof layouts.
Features
:- High Efficiency: Boasts a maximum efficiency of up to 98.7%, ensuring minimal energy loss during the conversion process.
- Dual MPPT Design: Features two independent Maximum Power Point Trackers (MPPT) with precise algorithms, allowing for flexible panel strings and better performance under partial shading.
- Wide Voltage Range: An ultra-low startup voltage of 180V and a wide MPPT range (160V–850V) allow for longer daily generation hours.
- Intelligent Management: Integrated Export Power Manager (EPM) allows users to limit the amount of energy fed back into the grid, ideal for self-consumption.
- Commercial Grade Durability: Rated IP65 for outdoor installation, featuring natural convection cooling and multiple protection levels (surge, short-circuit, and reverse polarity).
- Smart Monitoring: Supports local LCD display and optional remote monitoring via Wi-Fi, GPRS, or LAN for real-time system performance tracking through mobile apps.
