Brand: Kirloskar

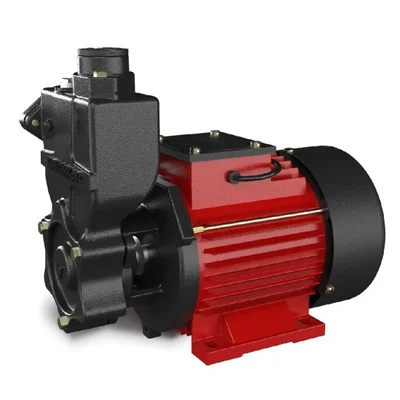

Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48m Max. Head, 25X25mm (MINI JALNAYAK-I (GOLD)) - 2 Years Of Warranty
SKU: TI-KM-12633
1068 people have viewed this recently
Delivery By: Dec 19 - Dec 21
MRP : ₹11200 ₹9949
11% OFF!
1068 people have viewed this recently Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9949 (Including GST)
MRP : ₹11200
11% OFF!
Get Extra ₹149 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar (MINI JALNAYAK-I (GOLD)) 1 HP, 3 Phase Self Priming Monoblock Pump
Max. Head 48 Meter, Max. Discharge 4050 LPH
This Pump is suitable for gardening purpose, domestic water supply, Construction Sites etc.
2 Years Of Warranty
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 1 hp
- Weight (Approx.) : 14 kg
- Flow Rate : 68 lpm
- Head : 48 meter
- Model No : MINI JALNAYAK-I (GOLD)
- Product Type : Self Priming Monoblock Pump
- Brand : KIRLOSKAR
- Power : 0.75 kW
- Rated Voltage : 415 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Three Phase
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Head Range : 6-48 Meter ( 20-157 Foot)
- Discharge Range : 4050 - 1040 LPH (68-17 LPM)
- Insulation Type : F Class
Material Of Construction :
- Impeller : Brass
- Delivery Casing : Cast Iron
- Motor Body : Aluminum Die Cast
- Shaft : Carbon Steel
- Mechanical Seal : Carbon Vs. Ceramic
Description
A self-priming monoblock pump integrates the motor and pump into a single unit and can automatically draw air from the suction line to initiate pumping without manual priming. It is widely used for domestic water supply, small-scale irrigation, and dewatering applications where reliable, hassle-free operation is needed.
Features
:- High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- High Grade F - Class Insulation : Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.
- Thermal Overload Protector (TOP) : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
- Wide Voltage Range : The motor is designed to withstand wide voltage fluctuations from 300 to 440 volts (Three Phase) and reduces chances of motor burning due to low/high voltage.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
- High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
- Enhanced Safety Features: All electrical parts of the pump are covered, which makes it safer to use.
Applications
:- Gardens and Fountains
- Feed Water to RO Plants
- Domestic Water Supply
- Water Supply to Overhead Tanks in Bungalows
- Construction Sites
- Car Washing
- Lawn Sprinklers
Warranty :
- 2 Years Onsite Warranty.
