Brand : Kirloskar

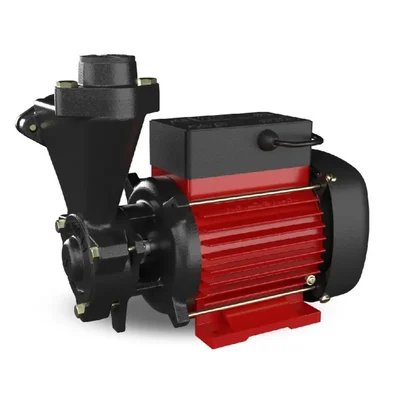

Kirloskar 0.5Hp Three Phase Self Priming Monoblock Pump, 30m Max. Head (MINI JALNAYAK-II (GOLD)) - 2 Years Of Warranty
SKU : TI-KM-12628
MRP : ₹10346
₹6645
36% OFF!
-
1
+
5 people have bought this recently
Get Extra ₹100 OFF on Prepaid Orders
Delivery By: Nov 5 - Nov 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 0.5 HP, 3 Phase Self Priming Monoblock Pump (MINI JALNAYAK-II (GOLD))
Max. Head 30 Meter, Max. Discharge Rate 2650 LPH
This Pump is suitable for gardening purpose, domestic water supply, Construction Sites etc.
2 Years Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 0.5 hp
  • Weight (Approx.) : 9 kg
  • Flow Rate : 44 lpm
  • Head : 30 meter
  • Model No : MINI JALNAYAK-II (GOLD)
  • Product Type : Self Priming Monoblock Pump
  • Brand : KIRLOSKAR
  • Power : 0.37 kW
  • Rated Voltage : 415 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Three Phase
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • Head Range : 6-30 Meter ( 20-98 Foot)
  • Discharge Range :  2650 - 660 LPH (44-11 LPM)
  • Insulation Type : F Class

Material Of Construction :
  • Impeller : Brass
  • Delivery Casing : Cast Iron
  • Motor Body : Aluminum Die Cast
  • Shaft : Carbon Steel
  • Mechanical Seal : Carbon Vs. Ceramic

Description
A self-priming monoblock pump is a kind of pump that has both a monoblock design and self-priming characteristics. Before beginning regular pumping operations, a self-priming monoblock pump is made to automatically remove air from the suction line and prime itself with liquid. This feature guarantees effective operation and removes the need for manual priming .

Features

 :
  • High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • High Grade F - Class Insulation : Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.
  • Thermal Overload Protector (TOP) : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
  • Wide Voltage Range : The motor is designed to withstand wide voltage fluctuations from 300 to 440 volts (Three Phase) and reduces chances of motor burning due to low/high voltage.
  • Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
  • High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
  • Enhanced Safety Features: All electrical parts of the pump are covered, which makes it safer to use.

Applications

 :
  • Gardens and Fountains
  • Feed Water to RO Plants
  • Domestic Water Supply
  • Water Supply to Overhead Tanks in Bungalows
  • Construction Sites
  • Car Washing
  • Lawn Sprinklers

Warranty :
  • 2 Years Onsite Warranty.
