3 Meter Chain Pulley Block With Chain
2 Ton Capacity
3 m standard lift, 6 mm load chain
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kepro

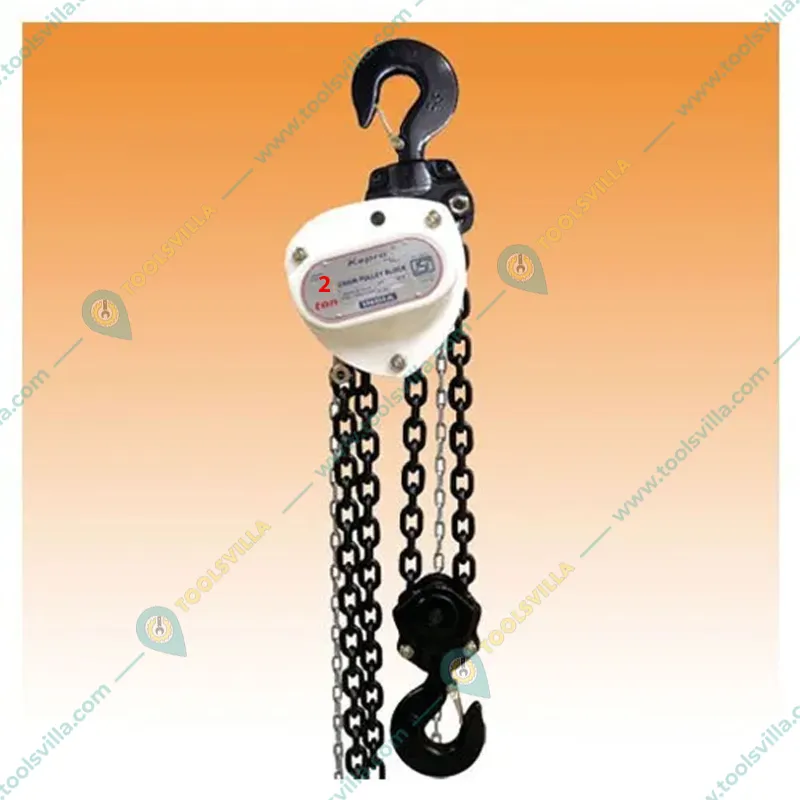

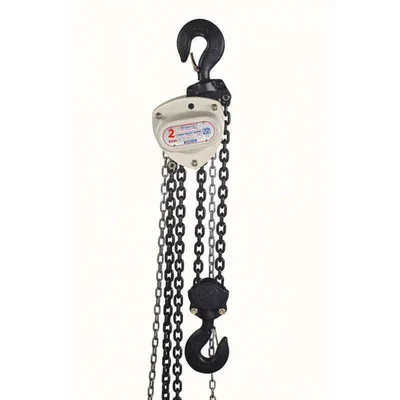

Kepro Hand Operated 2 Ton Chain Pulley Block with 3 meter Chain, 3 Meter Standard Lift (ISI Marked)
SKU : TI-KH-12643
MRP : âı14170
âı10500
26% OFF!
-
1
+
4 people have bought this recently
Delivery By: Jun 22 - Jun 24
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
Description
Kepro Hand Operated 2 Ton Chain Pulley Block with 3 meter Chain, 3 Meter Standard Lift (ISI Marked)
Description :
- A chain pulley block is a device for raising and lowering large weights. It has two working wheels that the chain is coiled around. Dragging the chain causes it to coil around the wheels and begin lifting the object attached to the rope or chain with a hook.
Features :
- Assurance of reliability and long service life.
- Durable and resistant fractures even under excessive loads.
- Robust in structure, consistent in performance, and has high tensile strength.
- Frames : Micro-alloyed steel highly strength quality precisely machined ensuring parallelism and alignment.
- Hooks : Grade âTâ Hooks with safety latches, designed and dimensioned as specified in IS: 15560-2005. made from alloy Steel forged and duly heat treated, compact size but sturdy. In 2 to 8 falls Chain Pulley Blocks, the bottom Housing contains an idler wheel with needle roller bearing for easy rotary motion.
- Load Chain Wheel : Steel recommended in lS:3832, cast, heat treated, tested, and accurately machined to suit calibrated load chain & needle roller bearings for free rotation, reducing the effort for lifting.
- Load Chain : Grade 80, alloy steel load chain as per Indian/international standard electrically resistance welded, heat treated in Induction furnace calibrated and tested. Chains have brilliant toughness, and resistance to wear and corrosion.
- Gears : Highly efficient, compact, and hard-wearing gears made from alloy steel, truly machined and case hardened assured long life.
- Bearings : To enhance mechanical efficiency, the load wheel is mounted on sealed Needle roller bearings. Additional bearings are also placed on gear cover to align the driving shaft and short pinions.
- Brake Mechanism : Precision self-actuating screw disc type mechanical brake engages Instant, outstanding stopping power and safety for high performance with rated capacity.
- Brake Disc : Asbestos-free long lasting, low. wear and more gripping ability.
- Pawl & Ratchet Mechanism : Two Nos. hardened Pawl with piano-type wire springs associated with ratchet discs to enhance performance level.
- Triple Protective Cover : One Gear cover to protect gears from external shock another chain cover to guide the hand Chain with an additional protective cover to protect the mechanical brake arrangement from dust and mud intrusion, made from thick steel.
- Load Chain Guide : To facilitate smooth movement of the load chain, two nos. rotary steel rollers Guide is used.
Specification :
- Product Type : Chain Pulley Block
- Brand : Kepro
- Test Load : 3000 Kg (3 Ton)
- Load Chain Length : 3 meter
- Load Chain Diameter : 6 mm
- Hand Chain : Galvanized
- No. of Fall : 2
- Lifting Height : 3 Mtrs
- Lifting Effort Required : 287 N
- Working : Manual
- Dimension (LxWxH) : 36x29x20 cm
Application :
- Suitable for a Wide Range of Applications for lifting materials which Include Construction, Manufacturing, Workshops, and warehouses.
Note :
- This product comes with a 6-month support assurance. And, we provide after-sales support any time after purchase.
