Brand : Kirloskar
Kirloskar 2 HP 8 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 177ft Head- 1 Year Warranty (KS4G-2008-CP)
SKU : DK-KB-2095
MRP : ₹46900
₹31200
33% OFF!
-
1
+
2110 people have viewed this recently
Get Extra ₹468 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

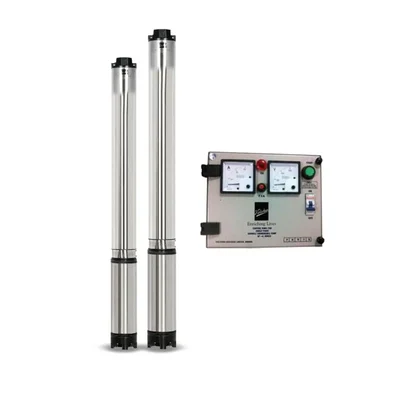

2 HP Single Phase Borewell Submersible Pump with Control Panel
14 to 54 meters Head Range
0 to 240 LPM Discharge Rate
4 Inch (100 mm) Boring Size
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 2 HP 8 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 177ft Head- 1 Year Warranty (KS4G-2008-CP)

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specifications :
  • Model No : KS4G-2008-CP
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 1.5 kW
  • Power Supply : 220V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Motor Type : Water Filled
  • Current Rating : 13.8 Amp
  • Boring Size : 4 Inch (100 mm)
  • Max. Head : 177 Feet (54 Meters)
  • Outlet Pipe Size : 50 mm
  • No. of Stages : 8
  • Max. Discharge Rate : 240 LPM (14400 LPH)
  • Winding Material : Copper

Materials of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

                  Applications :
                  • Domestic and community water supply
                  • Rural water supply
                  • Gardening and small farm irrigation
                  • Construction site
                  • Water supplies for high rise building

                        Warranty :
                        • One year onsite warranty.
