Brand:  Kirloskar

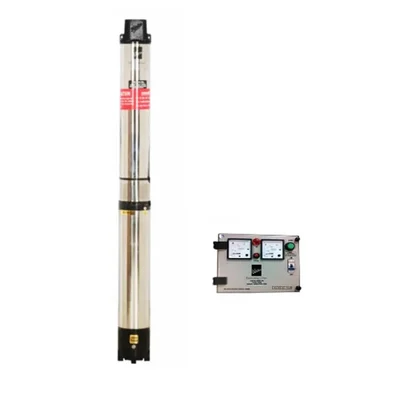

Kirloskar 1HP 15 Stage 3" 1Phase Water Filled Borewell Submersible Pump With CP, 203ft Head - 1 Year Warranty(KS3D-1015)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KS3D-1015) 1 HP Submersible Pump

Control Panel is Included

203ft Max. Head, 72LPM Max. Flow

1 Year Warranty

Country of origin: India

Description

Kirloskar 1HP 15 Stage 3" 1Phase Water Filled Borewell Submersible Pump With CP, 203ft Head - 1 Year Warranty(KS3D-1015)

Features :

• Low power consumption
• Designed for optimum efficiency
• Lightweight and compact size makes it easy to install

Specification :

• Model No : KS3D-1015
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Wattage : 0.75 KW
• Power Supply : 160-240V , 50 Hz

• Electricity Connection : Single Phase

• Motor Type : Water Filled

• Current Rating : 7.8 Amp

• Boring Size : 3 Inch (75 mm)

• Max. Head : 203 Feet (60 Meter)

• Outlet Size : 32 mm

• No. of Stages : 15
• Max. Flow Rate : 72 LPM (4320 LPH)

• Protection : IP 68

• Insulation : B Class

• Winding Material : Copper

Material Of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Applications :

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building

Note :

• Borewell Submersible Pump comes with Control Panel Board.

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1 hp
• Weight (Approx.) : 16 kg
• Flow Rate : 72 lpm
• Head : 60 meter
