Brand: Kirloskar

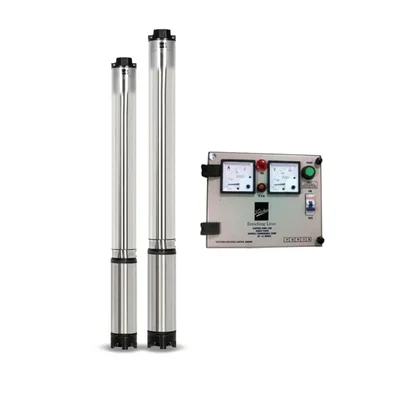

Kirloskar (KS4C-2014-CP) 2HP 14 Stage 4 inch Single Phase Water Filled Borewell Submersible Pump With Control Panel & 1 Year Warranty

SKU: DP-KB-21067
Regular Price : ₹25900
Offer Price : ₹24860 (Including GST)
Get extra ₹746 Discount (On Checkout)
Qty:
Easy
Returns
Quality
Assurance
Trusted
Delivery
After Sales
Assistance

Short Description

2 HP Water Filled Borewell Submersible Pump With Control Panel
0-90 LPM Discharge Rate
36 to 113 meter Head Range
1 Year Warranty

Description

Kirloskar (KS4C-2014-CP) 2HP 14 Stage 4 inch Single Phase Water Filled Borewell Submersible Pump With Control Panel & 1 Year Warranty

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

            Specifications :
            • Model No. : KS4C-2014-CP
            • Product Type : Borewell Submersible Pump
            • Brand : Kirloskar
            • Power Source : Corded Electric
            • Motor Power : 2 HP (1.5 kW)
            • Power Supply : 220V, 50 Hz, AC Power Supply
            • Electricity Connection : Single Phase
            • Borewell Size : 4 Inch
            • Head Range : 118 to 371 Feet (36 to 113 Meters)
            • Outlet Size : 38 mm
            • No. of Stage : 14
            • Current Rating : 13.8 Amp
            • Discharge Rate : 0-90 LPM (0-5400 LPH)
            • Weight : 10 Kg (Approx.)

            Materials of Construction :
            • Pump Housing : Stainless Steel
            • Pump Shaft : Stainless Steel
            • Motor Housing : Stainless Steel
            • Motor Shaft : Stainless Steel
            • Thrust Bearing : Carbon + Stainless Steel
            • Motor/Pump Bushes : Gun Metal
            • Impeller : Noryl
            • Diffuser : Noryl
            • NRV : Cast Iron
            • Suction : Cast Iron

                            Applications :
                            • Domestic and community water supply
                            • Rural water supply
                            • Gardening and small farm irrigation
                            • Construction site
                            • Water supplies for high rise building

                            Warranty :
                            • One year warranty on manufacturing defects only.

                                  ***This Borewell Submersible Pump comes with Control Panel Board
