Kirloskar (KS4D-3015 - CP) 3 HP 1Phase Submersible Pump with CP
105 LPM Discharge Range
120m Head range
10 Cm Boring Size
1 Year Warranty
Brand : Kirloskar

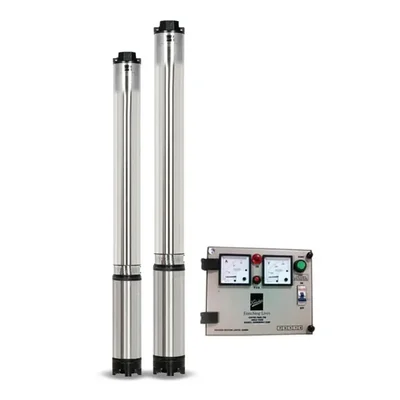

Kirloskar 3HP 15 Stage 4 inch Water Filled 1Phase Submersible Pump With CP, 394ft Head- 1 Year Warranty (KS4D-3015 - CP)
SKU : DP-KB-21074
MRP : ₹49000
₹32999
33% OFF!
-
1
+
1818 people have viewed this recently
Delivery By: Jul 14 - Jul 16
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 3 hp
- Weight (Approx.) : 38 kg
- Flow Rate : 105 lpm
- Head : 120 meter
- Model No. : KS4D-3015 - CP
- Product Type : Borewell Submersible Pump
- Power Source : Corded Electric
- Wattage : 2.2 kW
- Power Supply : 220V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Motor Type : Water Filled
- Current Rating : 19.8 Amp
- Boring Size : 4 Inch(10 Cm)
- Outlet Pipe (Size) : 38 mm
- Max. Head : 394 Feet(120 Meters)
- No. of Stages : 15
- Max. Discharge Rate : 105 LPM (6300 LPH)
- Winding Material : Copper
Materials of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
The Kirloskar 3HP 15 stage submersible pump is a powerful and efficient solution for a variety of water lifting applications. Designed for durability and performance, this pump is ideal for both residential and agricultural use, ensuring reliable water supply even in challenging conditions.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
- High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated
Applications
:- Domestic and industrial water supply
- Gardening and small farm irrigation.
- Farmhouse, nurseries and gardens
- Water supplies for high rise building.
- Construction site and Rural area water supply.
Warranty :
- One Year Onsite Warranty.
***This Borewell Submersible Pump comes with Control Panel Board
