Brand : Kirloskar

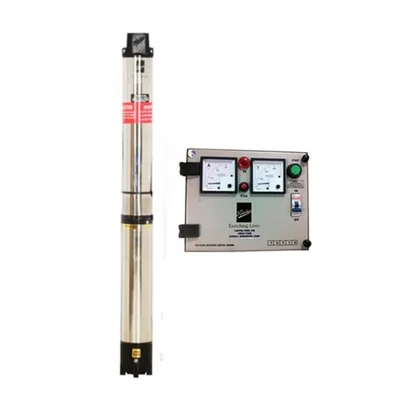

Kirloskar 3 HP 7 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 125ft Head- 1 Year Warranty (KS4H-3007 - CP)
SKU : DP-KB-21068
MRP : ₹47880
₹29999
37% OFF!
-
1
+
1938 people have viewed this recently
Get Extra ₹450 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4H-3007 - CP) 3 HP Submersible Pump with CP
420 LPM Max. Discharge Rate
38m Max. Head Range
4 Inch (100 mm) Boring Size
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 3 HP 7 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 125ft Head- 1 Year Warranty (KS4H-3007 - CP)

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specifications :
  • Model No. : KS4H-3007 - CP
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 2.2 kW
  • Power Supply : 220V, 50 Hz, AC Supply
  • Electricity Connection : Single Phase
  • Cooling Type : Water Filled
  • Current Rating : 19.8 Amp
  • Boring Size : 4 Inch (100 mm)
  • Max. Head : 125 Feet (38 Meters)
  • Outlet Pipe (Size) : 65 mm
  • No. of Stages : 7
  • Max. Discharge Rate : 420 LPM (25200 LPH)
  • Winding Material : Copper

Materials of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Applications :
  • Domestic and industrial water supply
  • Gardening and small farm irrigation.
  • Farmhouse, nurseries and gardens
  • Water supplies for high rise building.
  • Construction site and Rural area water supply.

Warranty :
  • One year onsite warranty

***This Borewell Submersible Pump comes with Control Panel Board
