Brand : Kirloskar

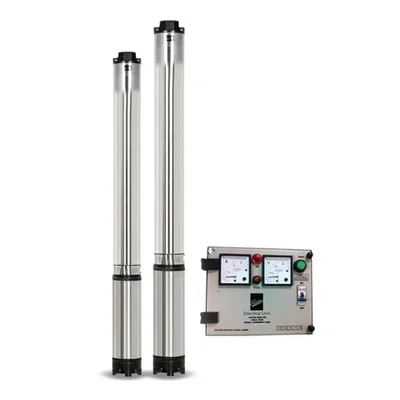

Kirloskar 3HP 9 Stage 1Phase Water Filled Borewell Submersible Pump With CP, 157ft Head 1 Year Warranty (KS4H-3009 - CP)
SKU : DP-KB-21070
MRP : ₹50400
₹33999
33% OFF!
-
1
+
3817 people have viewed this recently
Get Extra ₹510 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4H-3009 - CP) 3 HP Submersible Pump with CP
420 LPM Max. Discharge Rate
48 M Max. Head Range
4 Inch (100 mm) Boring Size
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 3HP 9 Stage 1Phase Water Filled Borewell Submersible Pump With CP, 157ft Head 1 Year Warranty (KS4H-3009 - CP)

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

            Specifications :
            • Model No. : KS4H-3009 - CP
            • Product Type : Borewell Submersible Pump
            • Brand : Kirloskar
            • Power Source : Corded Electric
            • Wattage : 2.2 kW
            • Power Supply : 220V, 50 Hz, AC Supply
            • Electricity Connection : Single Phase
            • Cooling Type : Water filled
            • Current Rating : 19.8 Amp
            • Boring Size : 4 Inch (100 mm)
            • Outlet Pipe (Size) : 65 mm
            • Max. Head : 157 Feet (48 Meters)
            • No. of Stages : 9
            • Max. Discharge Rate : 420 LPM (25200 LPH)
            • With Control Panel : Yes
            • Winding Material : Copper

            Materials of Construction :
            • Pump Housing : Stainless Steel
            • Pump Shaft : Stainless Steel
            • Motor Housing : Stainless Steel
            • Motor Shaft : Stainless Steel
            • Thrust Bearing : Carbon + Stainless Steel
            • Motor/Pump Bushes : Gun Metal
            • Impeller : Noryl
            • Diffuser : Noryl
            • NRV : Cast Iron
            • Suction : Cast Iron

            Applications :
            • Domestic and industrial water supply
            • Gardening and small farm irrigation.
            • Farmhouse, nurseries and gardens
            • Water supplies for high rise building.
            • Construction site and Rural area water supply.

            Warranty :
            • One Year Onsite Warranty
            ***This Borewell Submersible Pump comes with Control Panel Board
