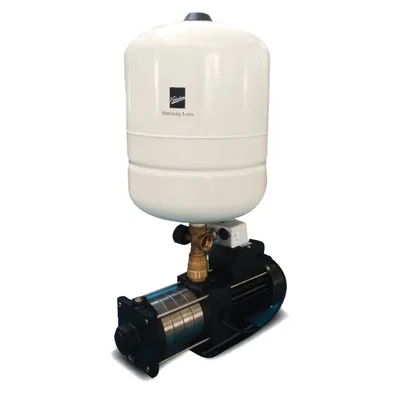

Kirloskar CPBS-62824V - 0.8HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)

Brand: Kirloskar

Kirloskar CPBS-62824V - 0.8HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)

Name: Kirloskar CPBS-62824V - 0.8HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)
Brand: Kirloskar
SKU: RON-KBL-200109
Price: 24999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: RON-KBL-200109

MRP : ₹40586 ₹24999

38% OFF!

1268 people have viewed this recently

Get Extra ₹375 OFF on Prepaid Orders

Delivery By: Dec 20 - Dec 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹24999 (Including GST)

MRP : ₹40586

38% OFF!

Get Extra ₹375 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Kirloskar (CPBS-62824V) 0.8 HP 1 Phase Vertical Pressure Booster Pump

6 - 35 meters Head Range

20-100 LPM Discharge Rate

1 Year Warranty

Country of origin: India

Brand: Kirloskar
Power : 0.8 hp
Weight (Approx.) : 26 kg
Flow Rate : 100 lpm
Head : 35 meter

Model No. : CPBS-62824V
Product Type : Vertical Pressure Booster Pump
Power Source : Corded Electric
Wattage : 0.6 kW
Power Source : 220V, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
Head Range : 20 to 115 feet (6 - 35 meters)
No. of Outlet : 6 per Taps
Rated Current : 6.5 Amps
Max. Pressure Range : 1.8 - 2.8 Kg/Cm²
No. of Stages : 3
Pipe Size (Suction x Delivery) : 25 x 25 mm
Tank Size : 24 liters
Discharge Rate : 20-100 LPM (1200-6000 LPH)

Materials of Construction :

Motor Body : Aluminium Die Cast
Impeller : Stainless Steel
Diffuser : Stainless Steel
Pump Shaft : Steel
Pump Stage Casting : Stainless Steel
Suction & Delivery Casing : Cast Iron
Insulation : B Class
Protection : IP 44

The Kirloskar 0.8HP pressure booster pump is a reliable and efficient solution designed to enhance water pressure in various applications. Ideal for residential and light commercial use, this pump ensures a consistent and strong water flow, making it perfect for boosting pressure in showers, faucets, and irrigation systems.

Features

Compact Reliable and Silent : Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations.
TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
Diaphragm Type Pressure Tank : Diaphragm type pressure tank made from high grade engineering material
Reliable & Durable Components : Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe.
Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
