Kirloskar (CPBS-73624H) 1 HP Single Phase Horizontal Pressure Booster Pump
6 - 41 Meters Head Range
20 to 140 LPM Discharge Rate
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar

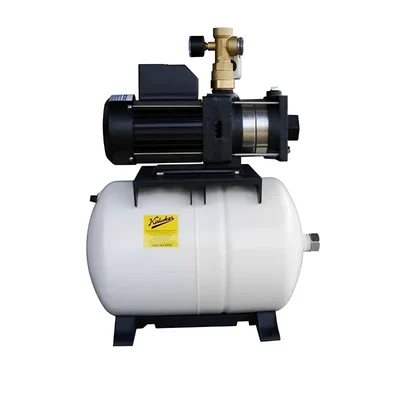

Kirloskar (CPBS-73624H) 1 HP Pressure Booster Pump Including 24 Liters Tank With 1 Year Warranty
SKU : RON-KBL-200120
MRP : ₹50400
₹32300
36% OFF!
-
1
+
3 people have bought this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
Description
Kirloskar (CPBS-73624H) 1 HP Pressure Booster Pump Including 24 Liters Tank With 1 Year Warranty
Features :
- Compact, Reliable and Silent : Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations.
- TOP-Thermal Overload Protector : The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current.
- Diaphragm Type Pressure Tank : Diaphragm type pressure tank made from high grade engineering material.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Specifications :
- Model No. : CPBS-73624H
- Product Type : Horizontal Pressure Booster Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Wattage : 0.75 kW
- Power Supply : 220V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Head Range : 20 to 135 Feet(6 - 41 Meters)
- No. of Outlet : 7 per taps
- Rated Current : 7.5 Amp
- Pressure Range : 2.2 - 3.6 Kg/cm²
- No. of Stages : 4
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Tank Size : 24 liters
- Winding Material : Copper Winding
- Discharge Rate : 20 - 140 LPM
Materials of Construction :
- Impeller : Stainless Steel
- Diffuser : Stainless Steel
- Motor Body : Aluminium Die Cast
- Pump Shaft : Stainless Steel
- Pump Stage Casting : Stainless Steel
- Suction & Delivery Casing : Cast Iron
- Insulation : B Class
- Protection : IP 44
Applications :
- Constant pressure at multi outlets
- Multi jet shower panels
- Washing machine, hot water geyser, gas geyser
- Pressurized washing of vehicles
- Kitchenware washing
Warranty :
- One year warranty on manufacturing defects only.
