Brand : Kirloskar

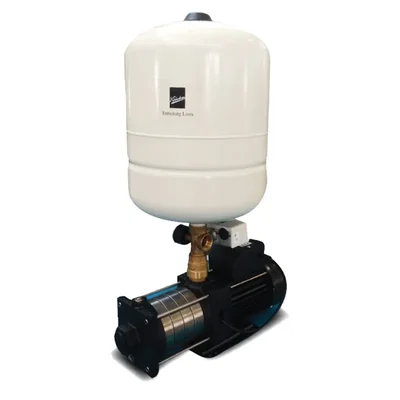

Kirloskar CPBS-73624V - 1HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)
SKU : RON-KBL-200110
MRP : ₹44800
₹30650
32% OFF!
-
1
+
3 people have bought this recently
Get Extra ₹460 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (CPBS-73624V) 1 HP Single Phase Vertical Pressure Booster Pump
6 - 41 meters Head Range
20-140 LPM Discharge Rate
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar CPBS-73624V - 1HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)

Features :
  • Compact Reliable and Silent : Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations.
  • TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • Diaphragm Type Pressure Tank : Diaphragm type pressure tank made from high grade engineering material
  • Reliable & Durable Components : Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.

        Specification :
        • Model No. : CPBS-73624V
        • Product Type : Vertical Pressure Booster Pump
        • Brand : Kirloskar
        • Power Source : Corded Electric
        • Wattage : 0.75 kW
        • Power Supply : 220V, 50 Hz, AC Power Supply
        • Electricity Connection : Single Phase
        • Head Range : 20 to 135 Feet (6 - 41 meters)
        • No. of Outlet  : 7 per Taps
        • Rated Current : 7.5 Amp.
        • Pressure Range : 2.2 - 3.6 Kg/Cm²
        • No. of Stages : 4
        • Pipe Size (Suction x Delivery) : 25 x 25 mm
        • Tank Capacity : 24 Liters
        • Winding Material : Copper Winding
        • Discharge Rate : 20-140 LPM (1200-8400 LPH)

        Materials of Construction :
        • Impeller : Stainless Steel
        • Diffuser : Stainless Steel
        • Motor Body : Aluminium Die Cast
        • Pump Shaft : Steel
        • Pump Stage Casting : Stainless Steel
        • Suction & Delivery Casing : Cast Iron
        • Insulation : B Class
        • Protection : IP 44

        Applications :
        • Consistent pressure at multi outlets
        • Multi jet shower panels
        • Washing machine, hot water geyser, gas geyser
        • Pressurized washing of vehicles
        • Kitchenware washing

        Warranty :
        • One year warranty on manufacturing defects only.
